Cable protection pipes
Electrical pipes for cable installation, ProtectorFlex® and ProtectorLine®, meet all modern requirements for cable systems. Our technical pipes for cable installation feature advanced engineering and ensure the reliability and integrity of cable lines.
Polymer pipes for cable installation offer high resistance to ultraviolet radiation, are corrosion-resistant and can be operated within a temperature range of -70 to +110 °C. By purchasing our pipes for cable installation, you get a solution with a service life of more than 50 years. If you want to purchase electrical pipes, please contact our manager.
Products

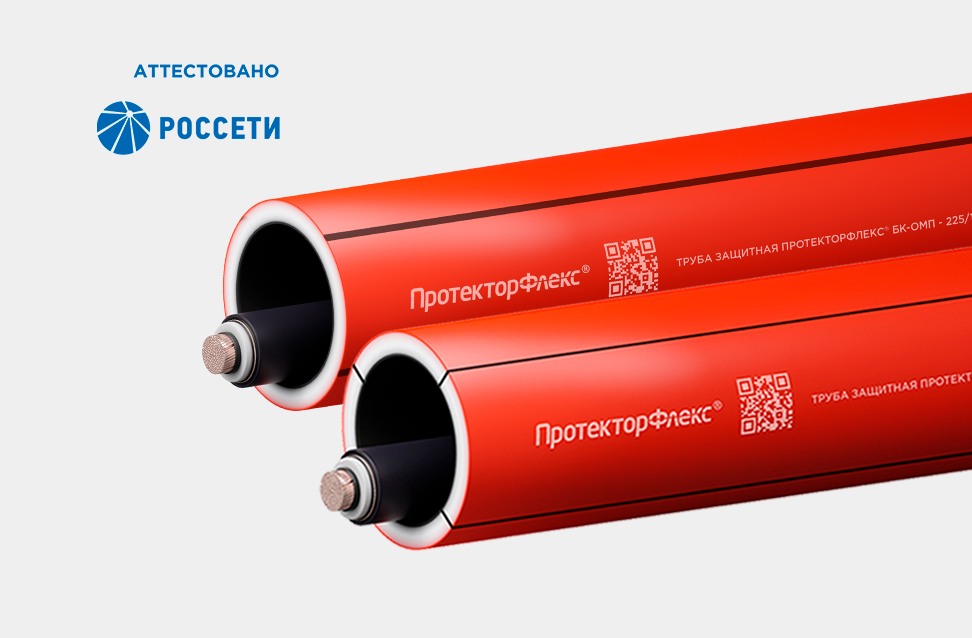

ProtectorFlex® BK-OMP pipes
Cable fault-locating, with a FV-O inner layer, heat-resistant, GOST R 70751, up to 500 kV
For cable sheath damage detection
For cable sheath damage detection

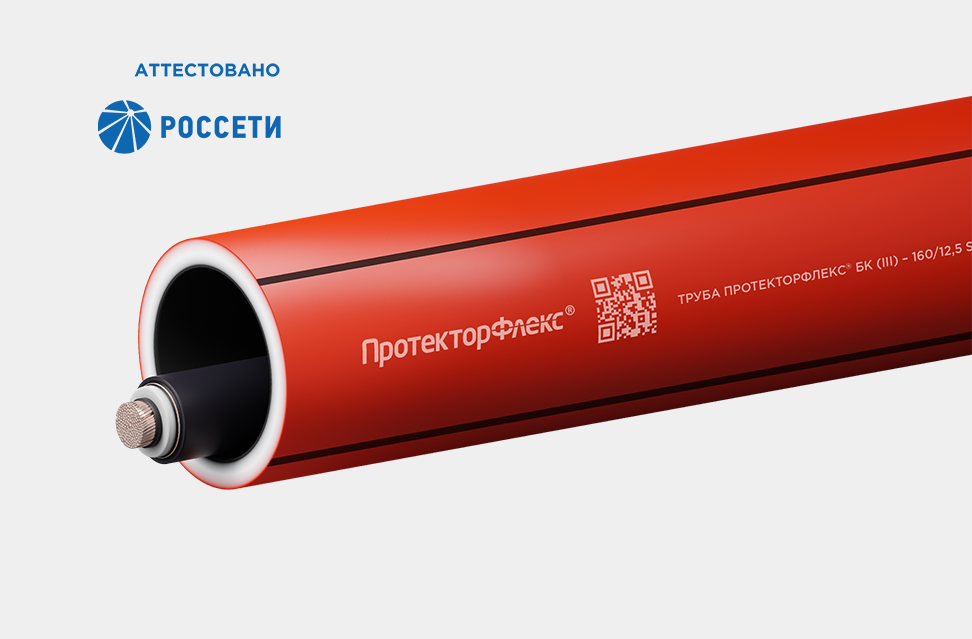

ProtectorFlex® BK pipes
With a FV-O inner layer, heat-resistant, GOST R 70751, up to 500 kV
For underground arranging by any known methods, as well as for the installation of duct banks
For underground arranging by any known methods, as well as for the installation of duct banks
ProtectorFlex® PRO-OMP pipes
Cable fault-locating, with a FV-O inner layer, with a protective sheath, heat-resistant, GOST R 70751, up to 500 kV
For cable sheath damage detection
For cable sheath damage detection

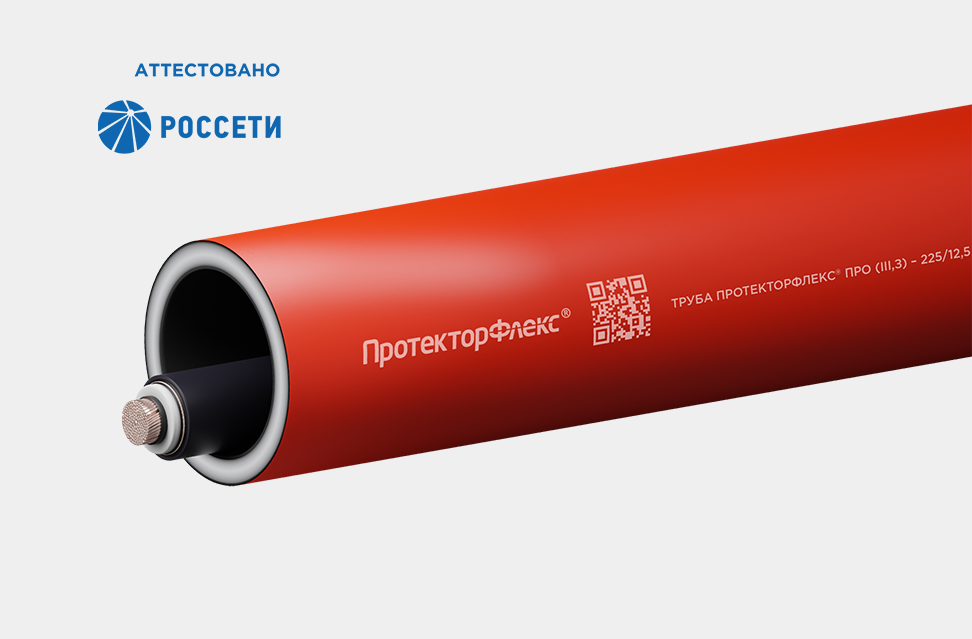

ProtectorFlex® PRO pipes
With a FV-O inner layer, with a protective sheath, heat-resistant, GOST R 70751, up to 500 kV
For arranging by horizontal directional drilling method with increased borehole length
For arranging by horizontal directional drilling method with increased borehole length

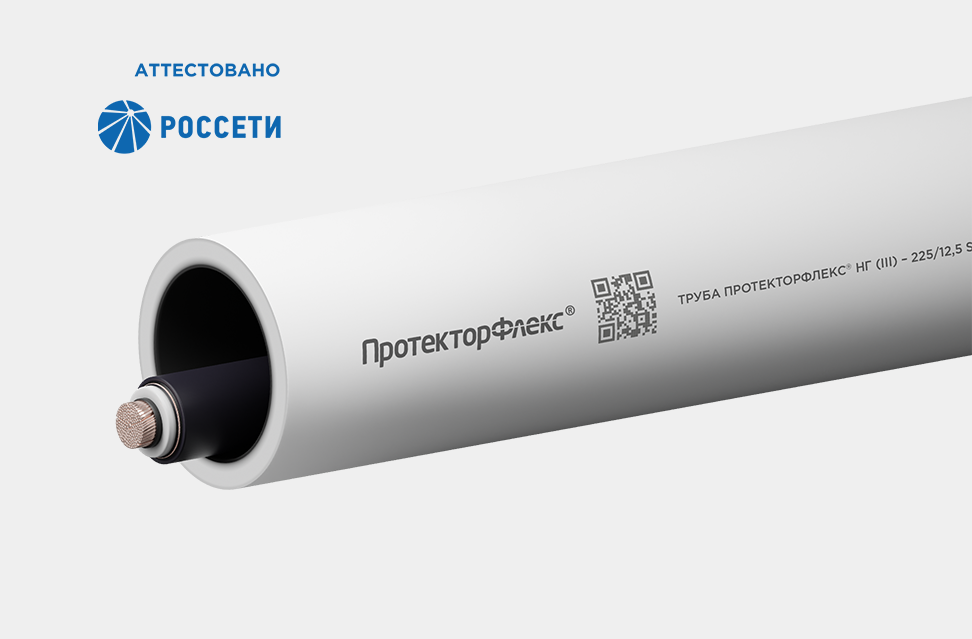

ProtectorFlex® NG pipes
UV-resistant, with an inner and outer layer of FV-0 category, heat-resistant, GOST R 70751, up to 500 kV
For arranging on bridges, viaducts, overpasses, and in tunnels
For arranging on bridges, viaducts, overpasses, and in tunnels

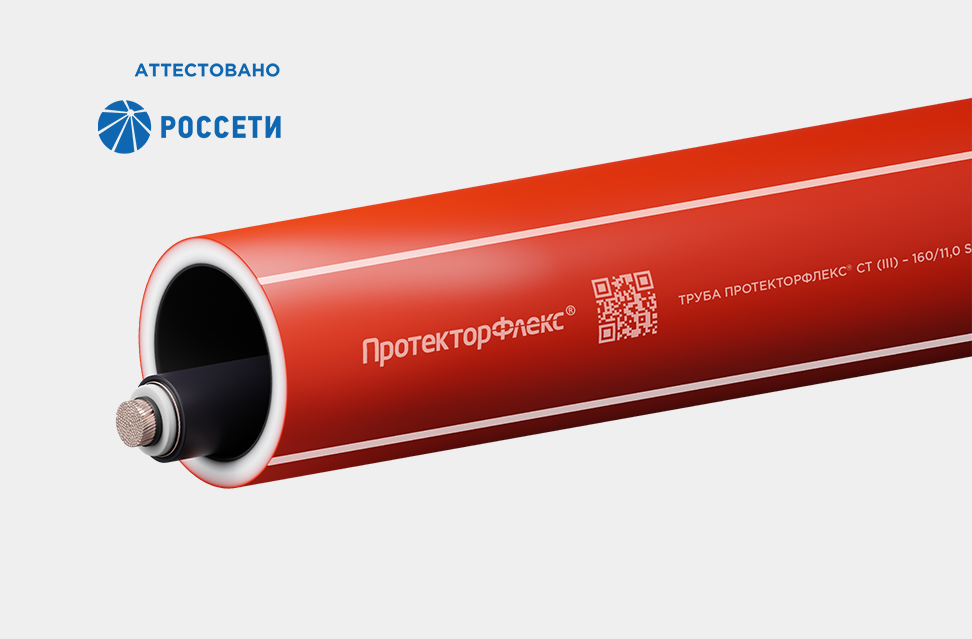

ProtectorFlex® ST pipes
Heat-resistant, GOST R 70751, up to 500 kV
For using as a protective casing when crossing roads and railways
For using as a protective casing when crossing roads and railways

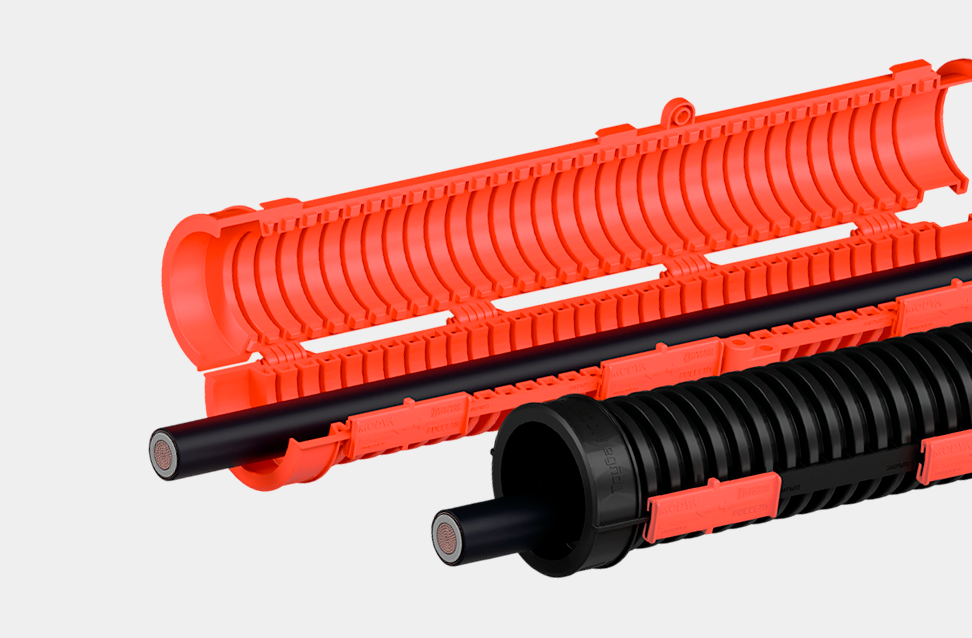

MODUL split pipes system
Split, UV-resistant, heat-resistant, high-strength
For protection of existing power cable lines and installation of temporary electrical networks
For protection of existing power cable lines and installation of temporary electrical networks

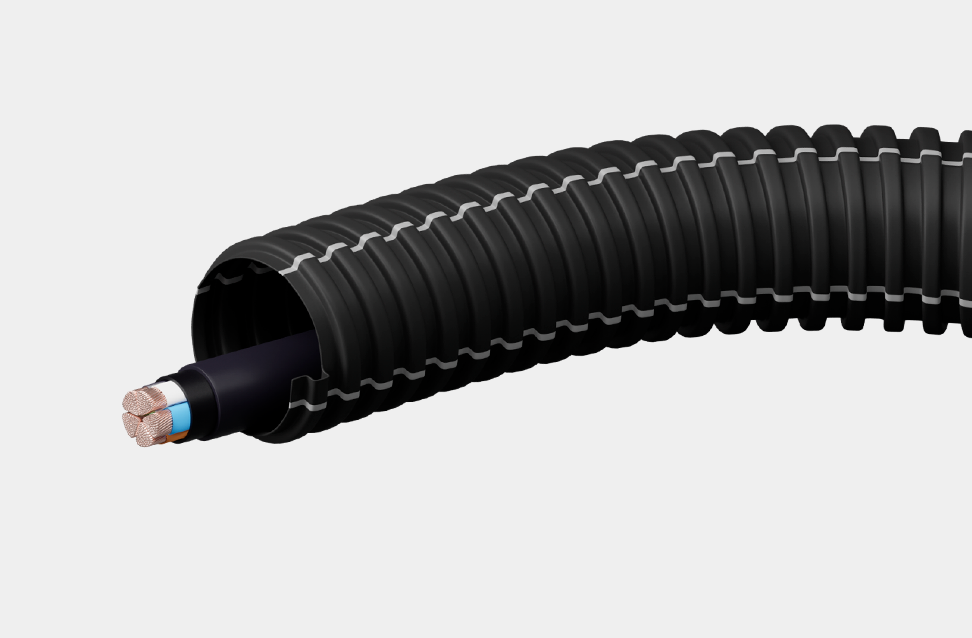

ProtectorLine® KS (I) pipes
Single-layer, flexible, increased strength, spiral-type
For mechanical protection of power cable lines, control cables, and FO communication lines
For mechanical protection of power cable lines, control cables, and FO communication lines

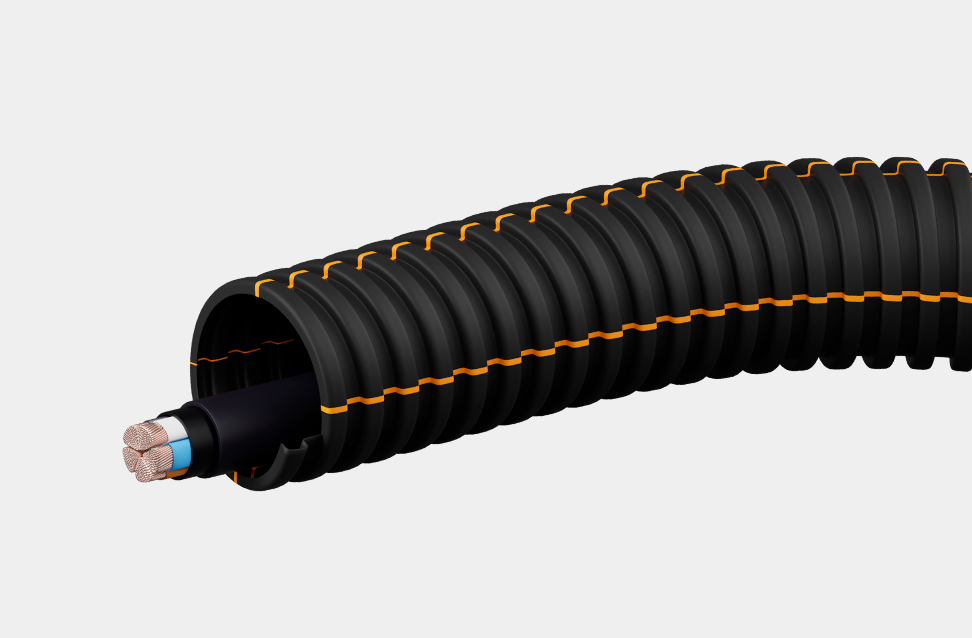

ProtectorLine® KN (I) pipes
With inner FV-0 layer, single-layer, flexible, increased strength, spiral-type
For mechanical protection of power cable lines, control cables, and FO communication lines. For applications requiring flame-resistance
For mechanical protection of power cable lines, control cables, and FO communication lines. For applications requiring flame-resistance

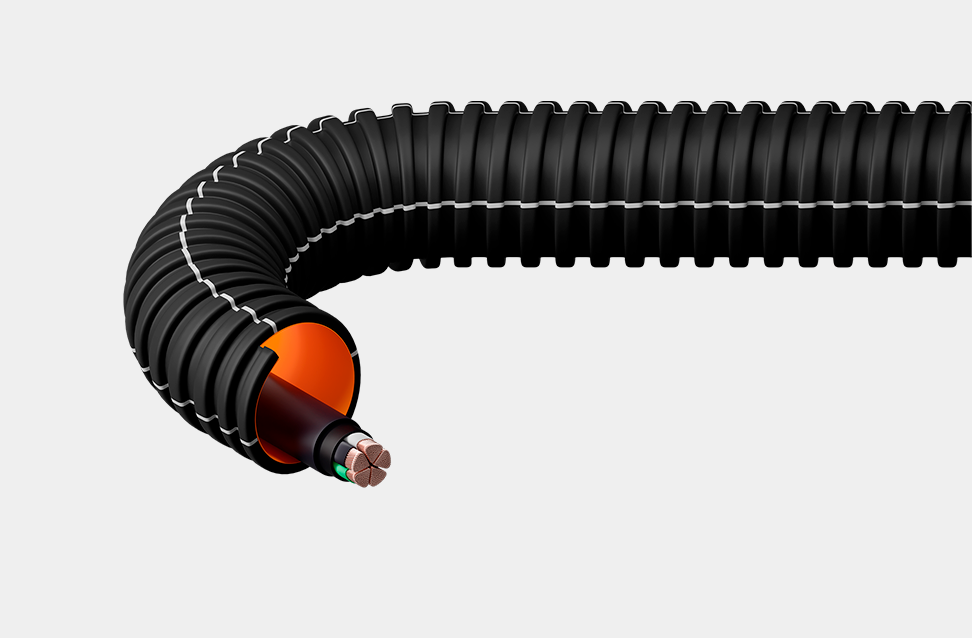

ProtectorLine® KS (II) pipes
Dual-layer, flexible, increased strength, spiral-type
For mechanical protection of power cable lines, control cables, and FO communication lines
For mechanical protection of power cable lines, control cables, and FO communication lines

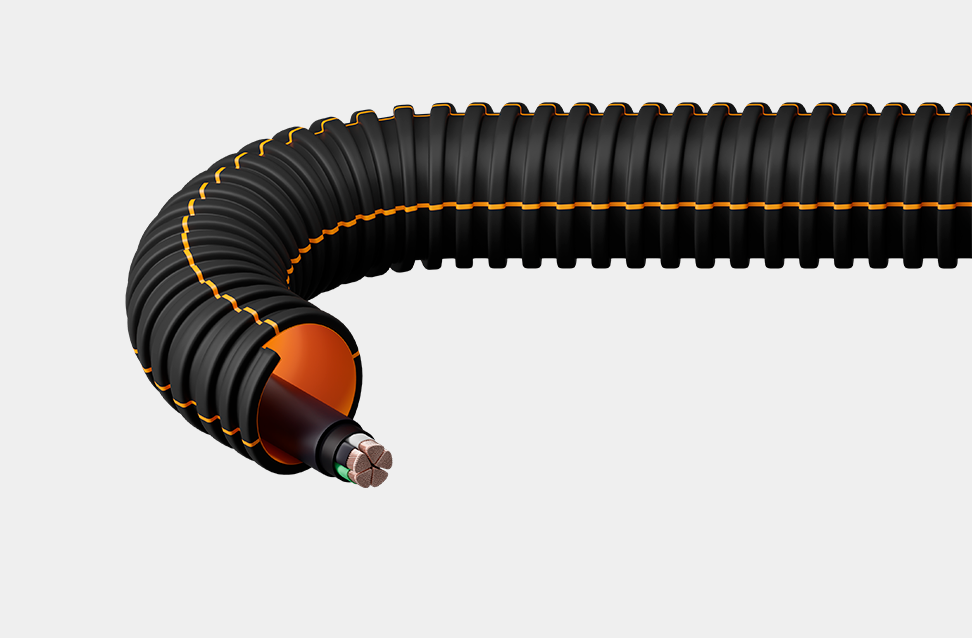

ProtectorLine® KN (II) pipes
With inner FV-0 layer, dual-layer, flexible, increased strength, spiral-type
For mechanical protection of power cable lines, control cables, and FO communication lines. For applications requiring flame-resistant inner layer of the pipe
For mechanical protection of power cable lines, control cables, and FO communication lines. For applications requiring flame-resistant inner layer of the pipe

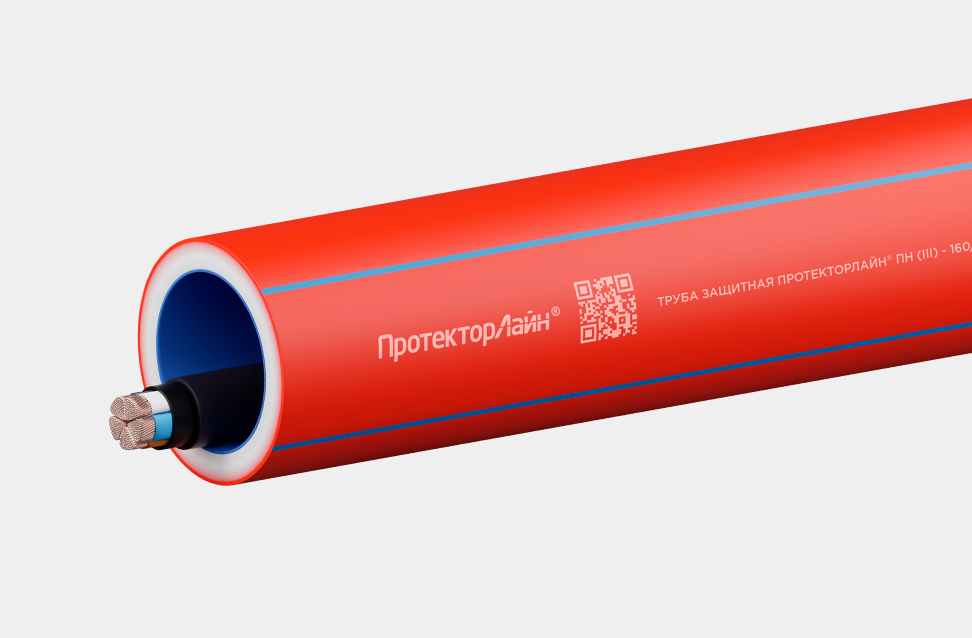

ProtectorLine® PN pipes
Smooth-walled, with inner FV-0 layer
For underground installation by any known methods, as well as for the construction of duct banks. For applications requiring flame-resistant inner layer of the pipe
For underground installation by any known methods, as well as for the construction of duct banks. For applications requiring flame-resistant inner layer of the pipe

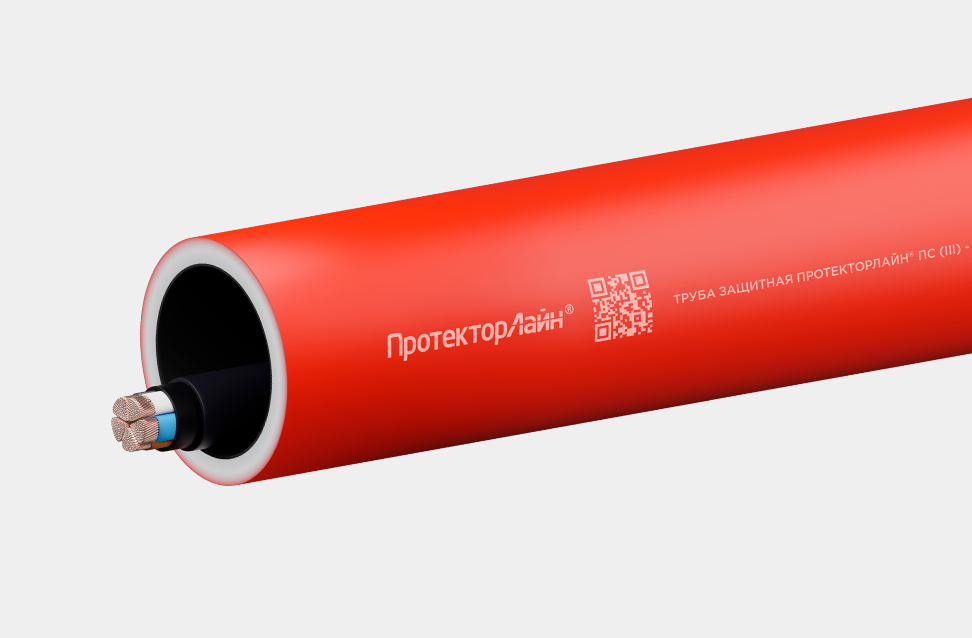

ProtectorLine® PS pipes
Smooth-walled
For underground installation by any known methods
For underground installation by any known methods

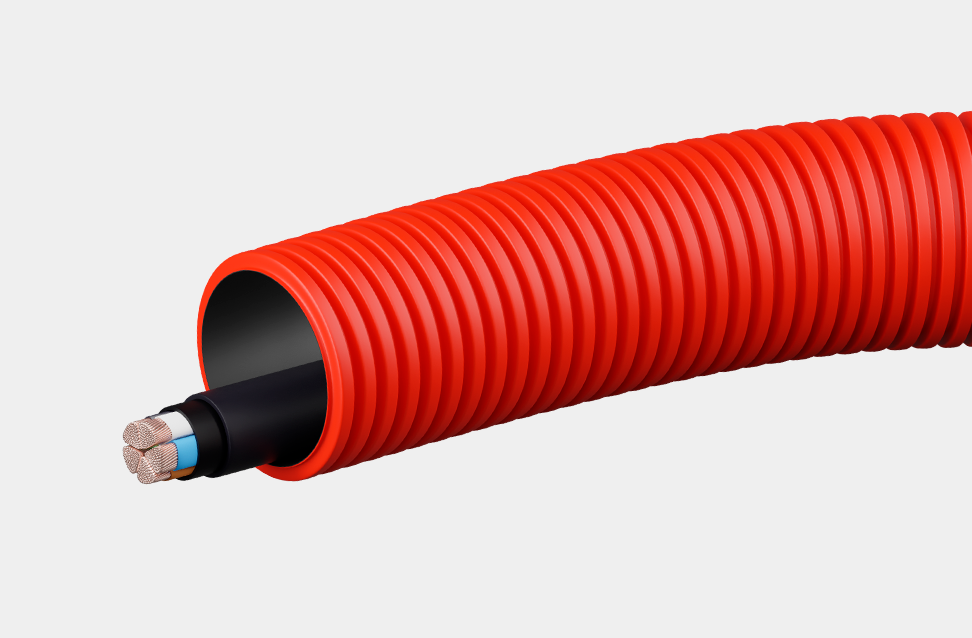

ProtectorLine® KORN pipes
Dual-layer, flexible, with inner FV-0 layer, corrugated, up to 1 kV
For installation by the trenching method
For installation by the trenching method

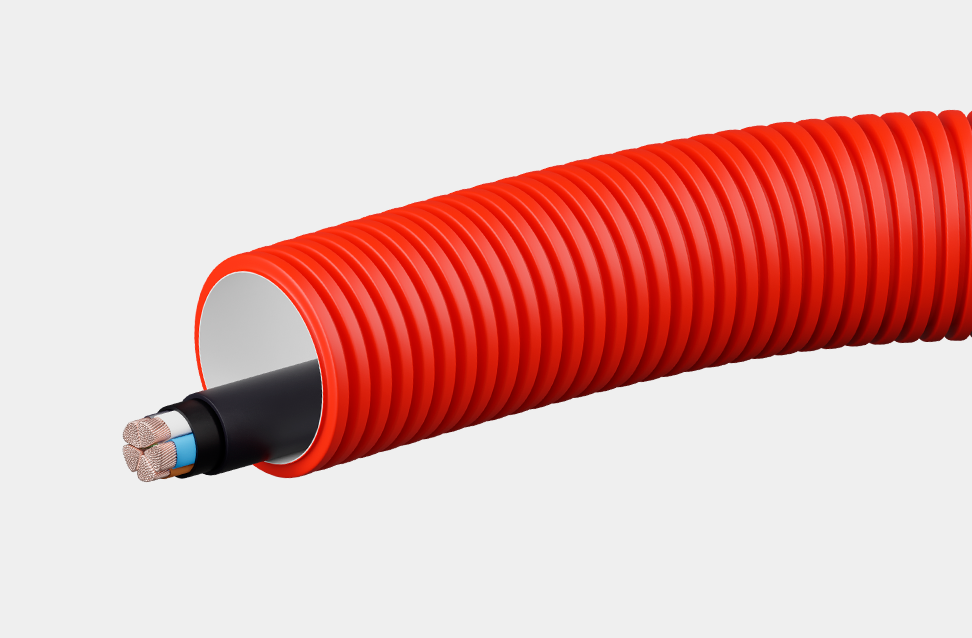

ProtectorLine® KOR pipes
Dual-layer, flexible, corrugated, up to 1 kV
For installation by the trenching method
For installation by the trenching method

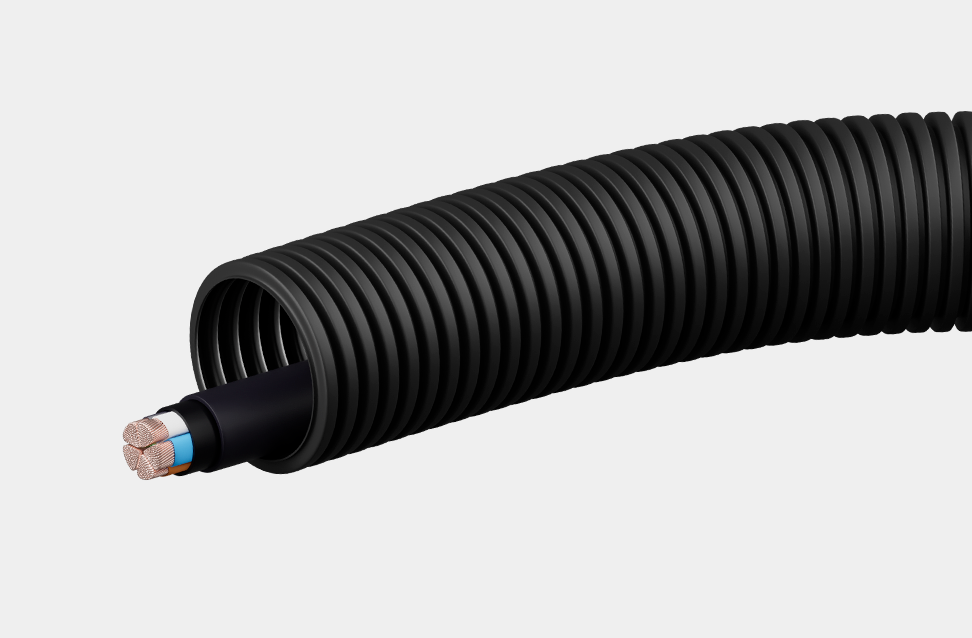

ProtectoLine® NG pipes
Of FV-0 category, corrugated, flexible, UV-resistant
For laying and mechanical protection of low-voltage and control cables, as well as FO communication lines on constructions and artificial structures
For laying and mechanical protection of low-voltage and control cables, as well as FO communication lines on constructions and artificial structures

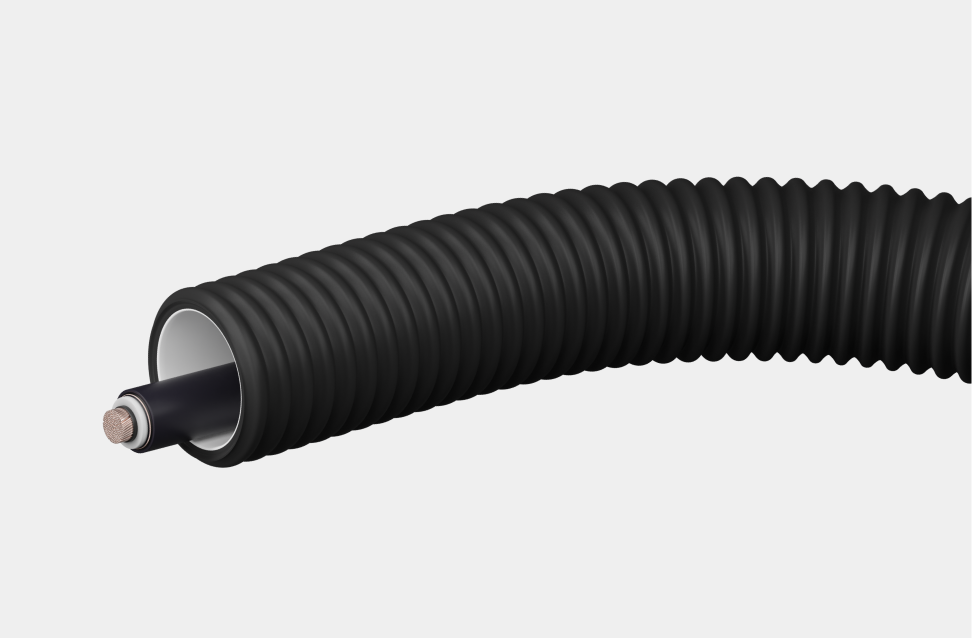

ProtectorFlex® PK pipes
Corrugated, UV-resistant, with an inner and outer layer of FV-0 category, heat-resistant, up to 500 kV
For arranging in conditions where pipes are subject to requirements of increased flexibility and resistance to UV radiation
For arranging in conditions where pipes are subject to requirements of increased flexibility and resistance to UV radiation
ProtectorFlex® VZK funnels
Polymer, heat-resistant
To prevent cable sheath damage during pulling into pipes
To prevent cable sheath damage during pulling into pipes
ProtectorFlex® UVK-3 cable seals
Polymer, watertight, heat-resistant, three-phase
For sealing the space between 3 cables and the pipe
For sealing the space between 3 cables and the pipe
ProtectorFlex® UVK cable seals
Polymer, watertight, heat-resistant, one-phase
For sealing the space between the cable and the pipe
For sealing the space between the cable and the pipe
ProtectorLine® ZK caps
Polymer, for spiral-type pipes
For sealing the ends of backup spiral-type pipes
For sealing the ends of backup spiral-type pipes
ProtectorFlex® ZUP protective cable caps
Polymer, watertight
For sealing the ends of backup and operational protective cable pipes
For sealing the ends of backup and operational protective cable pipes
ProtectorFlex® TAP transition adapters
Polymer, heat-resistant
For watertight connection of different types of pipes to each other
For watertight connection of different types of pipes to each other
“Pipe-to-pipe” 16-50 connectors
Polymer, watertight, UV-resistant
For watertight connection of corrugated pipes
For watertight connection of corrugated pipes
“Pipe-to-pipe” 40-200 connectors
Polymer, watertight, UV-resistant
For watertight connection of corrugated pipes with outer diameters of 40 to 200 mm
For watertight connection of corrugated pipes with outer diameters of 40 to 200 mm
Electrofusion couplers
Watertight
For welding polymer smooth-walled pipes to each other
For welding polymer smooth-walled pipes to each other
“Pipe-to-box” connectors
Polymer, watertight, UV-resistant
For watertight bushing of corrugated pipes or cables into the housing of polymer boxes
For watertight bushing of corrugated pipes or cables into the housing of polymer boxes
ProtectorLine® MK couplers
Polymer, for spiral-type pipes
For connecting together piral-type pipes
For connecting together piral-type pipes
ProtectorLine® KA ring-shape adapters
Elastic
For bushing smooth-walled and spiral pipes into ProtectorLine® PKT manholes
For bushing smooth-walled and spiral pipes into ProtectorLine® PKT manholes
ProtectorLine® KT spacers
Polymer, for all types of pipes
For fixing pipes when installing duct banks
For fixing pipes when installing duct banks
Polymer pipes for cable networks from Energotek address all the challenges faced by specialists involved in the installation of low- and high-voltage lines:
- Ensure reliable and uninterrupted operation of the cable line.
- Are convenient to use and ensure safe installation work.
- Allow for easy dismantling and repair of the line.
- Retain their original properties under all weather conditions.
- Prevent cable damage, as they do not deform when the ground settles.
Advantages of cable duct pipes
ProtectorFlex® and ProtectorLine® cable pipes from Energotek offer the following advantages:
- The pipe profile is designed to provide an ideal fit with accessories, fastening elements and support structures.
- Since all cable duct pipes are made of the same material, they can be operated within the same temperature range and under the same exposure to ultraviolet radiation and chemicals.
- Pipes for electrical cable installation are easy to install — they can be easily connected to each other, as well as to additional accessories used in the project.
- In addition to being easy to install, cable pipes can be dismantled quickly and easily, which is important when repairing the line (providing convenient access to the cable).
- High resistance to chemicals, as well as increased resistance to mechanical impacts, allows polymer cable pipes to be used in aggressive environments and for installation in any type of soil.
All of the above advantages of our cable duct pipes help to prevent problems such as:
- deterioration of properties
due to exposure to extremely low or high temperatures; -
loss of structural integrity
due to external mechanical or chemical impact; - the pipe sticking to the cable, which significantly complicates cable removal and replacement during repairs;
-
cable overheating
due to the low thermal conductivity of the walls of technical pipes for cable installation; -
abrasion during intensive use and cable installation under
any harsh conditions. - Applications of electrical pipes for cable installation
- Electrical pipes for power cables comply with GOST R IEC 61386 and are used in the following applications:
- bridge lighting systems — cable insulation pipes protect external power lines leading to bridge lighting equipment;
- cable line installation under road surfaces — technical cable pipes are used where above-ground installation of the cable network is not possible;
- power transmission lines — electrical pipes are used to protect cables from various adverse external factors;
- facilities with complex environmental conditions — industrial pipes for electrical cables are often used when installing networks to hydroelectric power plants and similar facilities;
- low-voltage networks — polymer cable pipes are used to protect communication, control, monitoring and signal wires;
- high-voltage networks — multilayer large-diameter pipes for cable installation from 1 kV.
We offer electrical pipes for cable installation that fully meet their intended purpose and comply with all applicable regulations, standards and GOST requirements. At the same time, Energotek offers competitive prices for cable pipes for any application.
