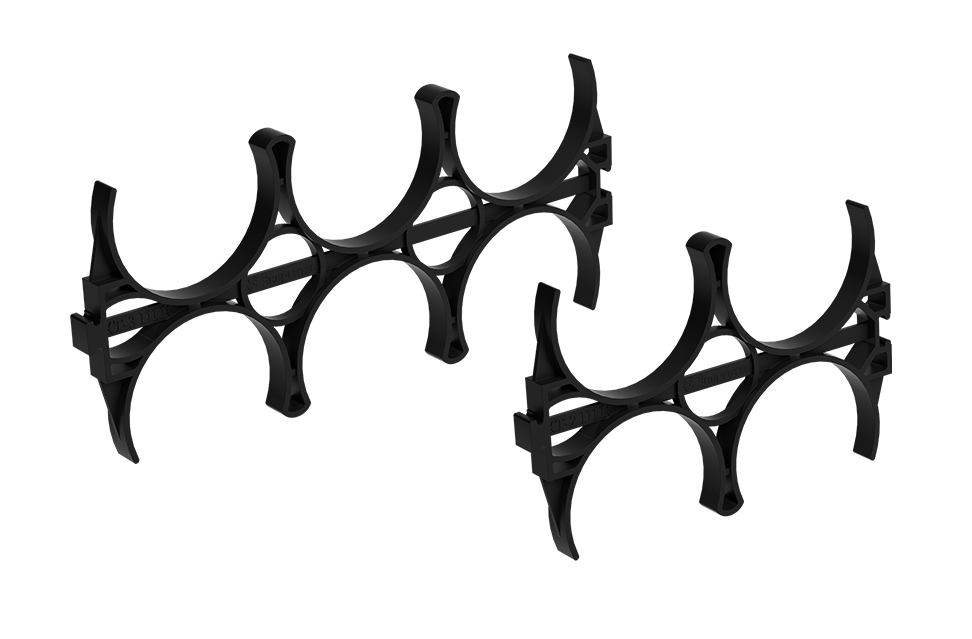

ProtectorLine® KT spacers
Polymer, for all types of pipes
For fixing pipes when installing duct banks
01
01 Description
ProtectorLine® KT spacer is a cluster made of polymer material, having special grooves and ridges for interconnecting to create blocks of various configurations.
Modifications
ProtectorLine® KT-2 spacers with ProtectorLine® KN spiral pipes
ProtectorLine® KT-3 spacers with ProtectorFlex® BK pipes
years
0
+
Long service life
(at least 50 years)
(at least 50 years)
Key advantages
- Universal application: can be used with corrugated, spiral-type, and smooth-walled pipes
- Resistance to aggressive and chemically active environments
- Dielectric properties
- Modular design: can be connected to each other, creating blocks of different configurations
- Have low weight and are easy to install
02
02 Application area
Pipe fixation
Intended for fixing pipes when installing duct banks. For creating blocks of various configurations, ensuring orderly pipe arrangement.
03
03 Product range of ProtectorLine® KT
| Pipe outer diameter, mm | Spacer name | |
|---|---|---|
| Double spacer | Triple spacer | |
| 50 | ProtectorLine® KT-2 D50 |
ProtectorLine® KT-3 D50 |
| 63 |
ProtectorLine® KT-2 D63 |
ProtectorLine® KT-3 D63 |
| 75 |
ProtectorLine® KT-2 D75 |
ProtectorLine® KT-3 D75 |
| 90 | ProtectorLine® KT-2 D90 | ProtectorLine® KT-3 D90 |
| 110 |
ProtectorLine® KT-2 D110 |
ProtectorLine® KT-3 D110 |
| 125 |
ProtectorLine® KT-2 D125 |
ProtectorLine® KT-3 D125 |
| 140 |
ProtectorLine® KT-2 D140 |
ProtectorLine® KT-3 D140 |
| 160 |
ProtectorLine® KT-2 D160 |
ProtectorLine® KT-3 D160 |
04
04
Standart
documentation
- TU 22.29.29-008-34311042-2017
05
05
Example wording for categories
or technical specifications:
Spacer
Item name
PROTECTORLINE
Trade name
KT
Spacer design
-
2
Quantity of pipes in a row
D110
Outer diameter of the pipe installed in the block
TU 22.29.29-008-34311042-2017
Technical specification reference number
- ProtectorLine KT-2 D110 spacer TU 22.29.29-008-34311042-2017
Polymer spacer for pipe fixation
06
06
Main
characteristics
Operating temperature
- Long-term, for the entire service life: -70 to 90°С
Installation specifics
- Minimum installation temperature -20°С
- Inter connection of spacers requires installing the ridges of one spacer into the grooves of another
Modifications
- ProtectorLine® KT-2 double spacers
- ProtectorLine® KT-3 triple spacers
