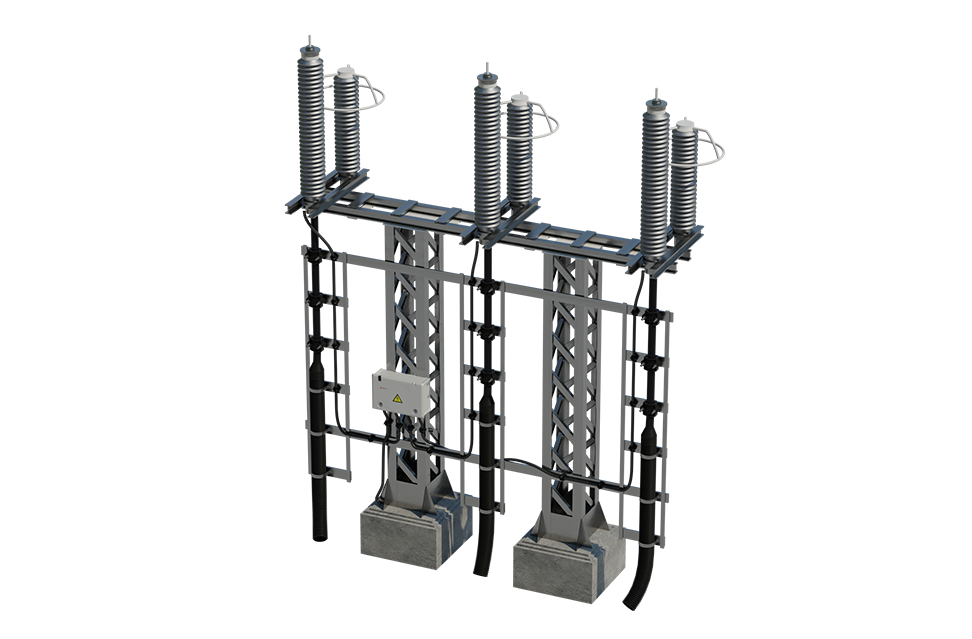

Energotek KVL cable protection system at transition points
Cable protection system at transition points
Complex solution for arranging and protecting
power cables at transition points where the cable line connects to an overhead line
01 Description
Energotek KVL adapter is a complex solution for arranging and protecting power cables up to 500 kV at transition points where the cable line connects to an overhead line, as well as where cables rise from the ground onto metal structures. Intended for laying trenched and trenchless under UV exposure.

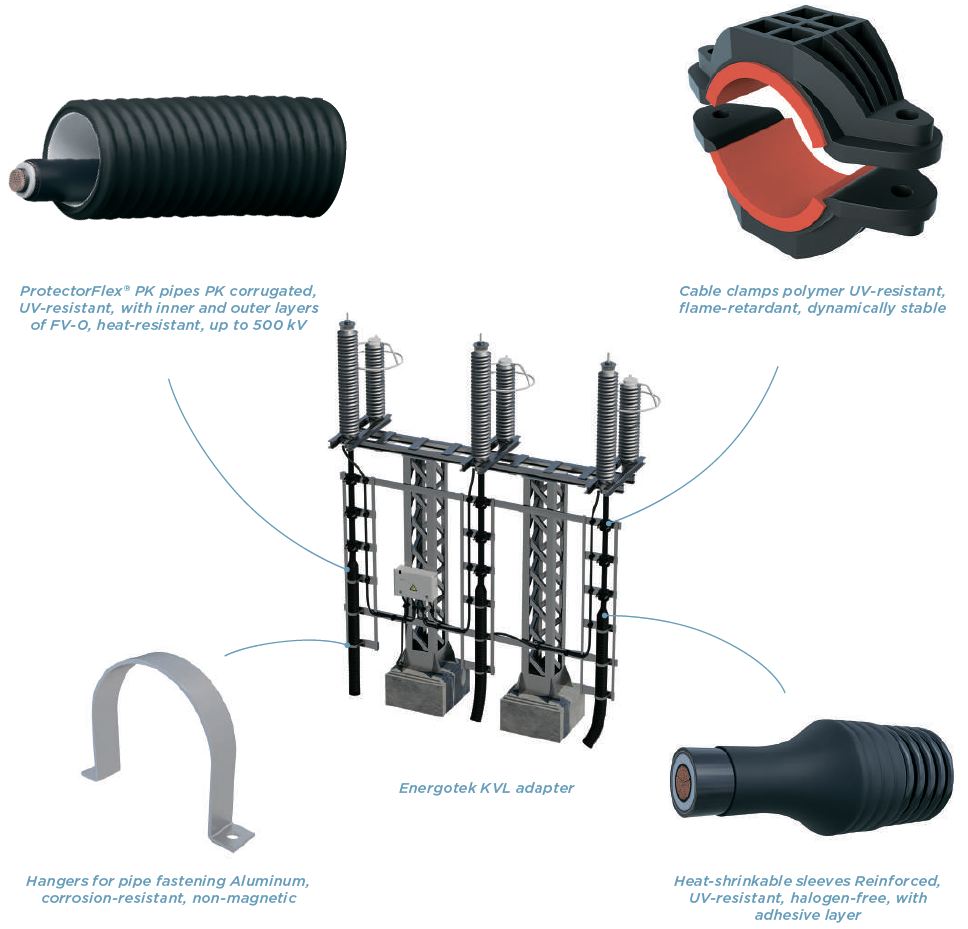

Energotek KVL adapter
- ProtectorFlex® PK pipe
- Cable clamps polymer UV-resistant, flame-retardant, dynamically stable
- Hangers for pipe fastening Aluminum, corrosion-resistant, non-magnetic
- Heat-shrinkable sleeves Reinforced, UV-resistant, halogen-free, with adhesive layer
Hardware for cable clamps and hangers is not included in the delivery kit.
(at least 30 years)
Key advantages
- Applicable on cable lines of any voltage class
- Applicable when transitioning cable lines out of trenches, pipes, cable trays
- Provides reliable mechanical protection of the cable
- ProtectorFlex® PK pipes, included in the system, offer increased flexibility
-
ProtectorFlex® PK pipes, included in the system, have high mechanical strength:
– ring stiffness – 6 kN/m2
– light impact resistance (L code) - Cable clamps ensure reliable cable fixation and prevent its displacement under external and electromagnetic influences
- Fire-safe design
- Resistant to UV exposure
- Resistant to corrosion
- Resistant to chemically aggressive environments (seawater, acids, alkalis, etc.)
- Colour stability: no additional coating is required throughout the service life
- Heat resistance: system elements are heat-resistant throughout their service life
- Climatic version and installation category according to GOST 15150-69: UHL1 (climatic category: cold/temperature), M1 (standard vibration and shock resistant)
02 Product range of Energotek KVL adapters
| Name | Range of used cables diameters, mm | Polymer cable clamps with range of diameters of clamped cables, mm | ProtectorFlex® PK pipes with outer diameter, mm | Heat-shrinkable sleeves with recommended mounting diameters, mm |
| Energotek KVL 25/40 adapter | 25-40 | 25-40 | 110 | 20-120 |
|
Energotek KVL 40/65 adapter |
40-65 | 40-65 | 110 | 35-120 |
|
Energotek KVL 65/90 adapter |
65-90 | 65-90 | 160 | 55-170 |
|
Energotek KVL 90/130 adapter |
90-130 | 90-130 | 200 | 75-225 |
|
Energotek KVL 130/160 adapter |
130-160 | 130-160 | 200 | 105-225 |
Guidelines for selecting the Energotek KVL adapter type and size
The Energotek KVL cable protection system at transition points includes all necessary components for cable protection and its fastening on metal structures of the transition point.
Adapter version is selected based on the outer diameter of the cable
The pipe diameter, sizes of cable and pipe clamps, and heat-shrinkable sleeves are determined by the manufacturer.
Pipe length, quantity of cable clamps and pipe hangers depends on the design of the transition points and is determined at the design stage.
03
Standart
documentation
- PUE 7 Rules for Electrical Installations
- STО 56947007-29.060.20.071-2011 “Power Cable Lines with Voltage of 110-500 kV. Conditions of creation. Norms and Requirements”
04
Example wording for categories
or technical specifications:
- ENERGOTEK KVL 66/90 K9 D160-12 transition adapter
Cable protection system at transition points of cable-to-overhead lines
