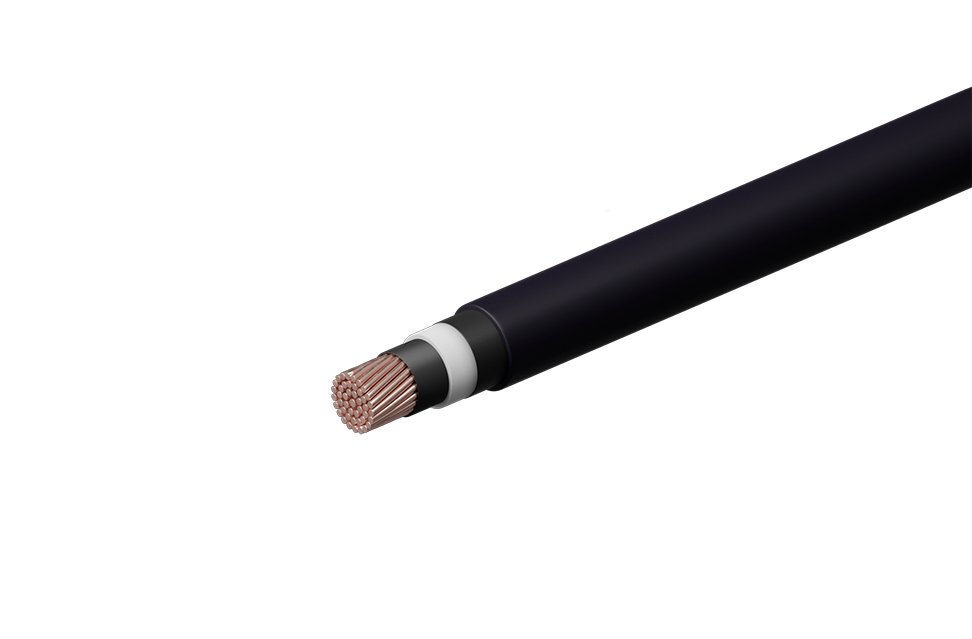

Energotek PPS bonding cable (PE insulated)
Connecting, flexible, watertight, flame-retardant
For bringing out screens of single-phase 6–500 kV cables
Sheath – high-density
polyethylene sheath
polyethylene sheath
Water-blocking tape
Insulation
Water-blocking tape
Cable core – copper, multi-wire with longitudinal sealing
01
01 Description
Design
Energotek PPS bonding cable is a connecting conductor featuring:
- Cable core – copper, multi-wire with longitudinal sealing
- Insulation – of cross-linked polyethylene/halogen-free flame-retardant polymer compound
- Sealing layer over insulation made of water-blocking tapes
- Sheath – high-density polyethylene, resistant to aggressive and chemically active environments/flame-retardant halogen-free sheath
years
0
+
Long service life
(at least 30 years)
(at least 30 years)
Key advantages
- Withstands alternating current voltage of 20 kV for 4 hours
- Reliable watertightness: resistance to longitudinal water propagation
- Lightweight construction: no copper screen or semiconducting layers over the core and insulation
- Flexible: minimum bending radius during installation is 10 wire diameters
- Resistance to aggressive and chemically active environments
- Easy installation – conductor design allows for quick disconnection and mounting
- UV-resistant sheath (for PPS, NG version)
- Flame-retardant – made of a non-combustible, halogen-free polymer compound (for PPS, NG version)
02
02 Application area
Bringing out screens of single-phase cables
6
kV
500
kV
Intended for bringing out screens of single-phase 6–500 kV cables from transposition or termination joints to transposition link boxes, earthing link boxes, or the grounding loop.
03
03
Standart
documentation
- TU 27.32.14-001-39082310-2023
04
04 Dimensions and product range of Energotek PPS bonding cables*
| Name | Number and cross-section of cores, mm2 | One-second short-circuit current, кА | Outer diameter of wire over sheath, mm | Diameter of wire core, mm | Calculated weight of 1 km of wire, kg |
|
ENERGOTEK PPS 1x70/ENERGOTEK PPS NG 1x70 |
1×70 |
12,1 | 19,14 / 23,14 | 9,80 | 785 / 1119 |
|
ENERGOTEK PPS 1x95/ENERGOTEK PPS NG 1x95 |
1×95 |
16,6 | 20,74 / 24,74 | 11,40 | 1030 / 1394 |
|
ENERGOTEK PPS 1x120/ ENERGOTEK PPS NG 1x120 |
1×120 |
21,1 | 22,24 / 26,44 | 12,70 | 1273 / 1638 |
|
ENERGOTEK PPS 1x150/ENERGOTEK PPS NG 1x150 |
1×150 |
26,0 | 23,64 / 27,94 | 14,10 | 1536 / 1975 |
|
ENERGOTEK PPS 1x185/ENERGOTEK PPS NG 1x185 |
1×185 |
32,4 | 25,44 / 30,04 | 15,90 | 1886 / 2390 |
|
ENERGOTEK PPS 1x240/ENERGOTEK PPS NG 1x240 |
1×240 |
42,7 | 28,04 / 32,44 | 18,30 | 2430 / 2979 |
|
ENERGOTEK PPS 1x400/ENERGOTEK PPS NG 1x400 |
1×400 |
68,2 | 33,04 / 38,34 | 23,30 | 3796 / 4543 |
* Custom conductor cross-sections are available upon request.
05
05 Delivery kit
Upon request can be supplied equipped with:
- With cable lugs
- Heat-shrinkable sleeves
06
06
Example wording for categories
or technical specifications:
Cable
Item name
ENERGOTEK
Trade name
PPS
Wire design
NG
Flame-retardant
1х150
Number and cross-section of course
-
10 kV
DC test voltage
TU 27.32.14-001-39082310-2023
Technical speification reference number
- ENERGOTEK PPS 1x150 – 10 kV bonding cable TU 27.32.14-001-39082310-2023
Watertight flexible connecting bonding cable for cross-bonding of cable screens up to 500 kV
- ENERGOTEK PPS NG 1x150 – 10 kV bonding cable TU 27.32.14-001-39082310-2023
Watertight flexible connecting bonding cable, flame-retardant for bunched installation, for cross-bonding of cable screens up to 500 kV
07
07
Main
characteristics
Operating temperature
- Operation at ambient temperature between -60 and 50°С
Shipping length
Supplied on coils – length to be agreed upon order.
Installation specifics
- Minimum installation temperature without preheating is -20°С
- Minimum bending radius – 10D, where D is the outer diameter of the wire
