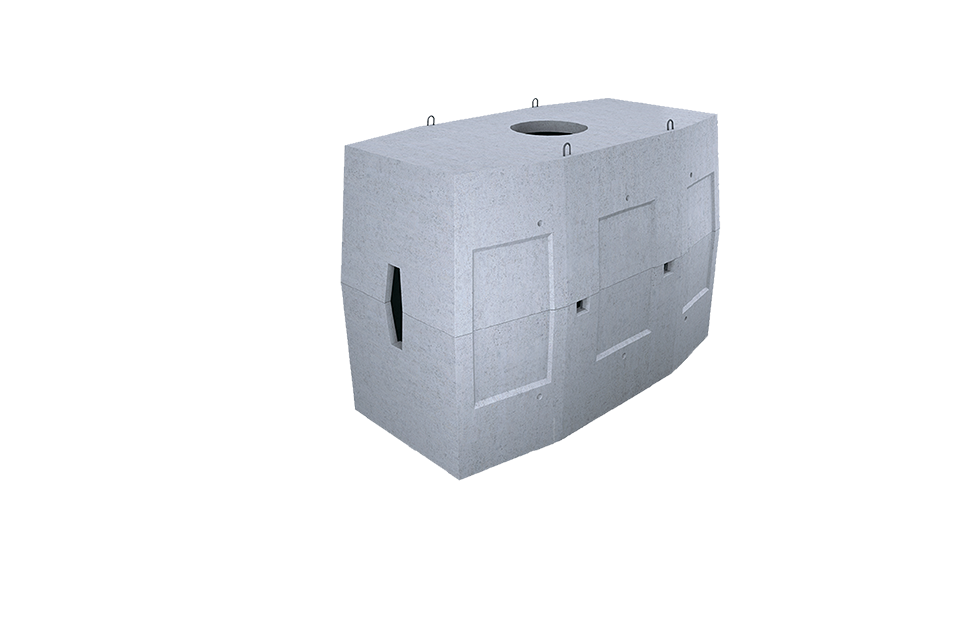

ProtectorLine® BET manholes
Reinforced concrete, cable
For arranging bends, connections, and branches of cable pipe ducts
01
01 Description
ProtectorLine® BET manholes are composite reinforced concrete manholes consisting of two parts. The upper part has a circular opening with a diameter of 600 mm for forming a neck for a manhole cover. The lower part has a rectangular sump at the base for drainage. The end and side walls of the manhole have openings in which holes for pipe entry can be drilled.
Modifications
- B20 manholes, made from class B20 concrete
- B25 manholes, made from class B25 concrete
- B manholes with a layer of bituminous waterproofing applied to their surface
years
0
+
Long service life
(at least 30 years)
(at least 30 years)
Key advantages
- Intended for installation both under pedestrian zones (lawn, sidewalk) and under the roadways
- Installation under roads is performed without installing load relief covering slabs
- Various pipe entry options – support multiple diameters, quantities, and pipe configurations (smooth, spiral-type, corrugated)
- Can be made from concrete of various classes: B20 or B25
- No temperature limits for installation
02
02 Application area
Arranging bends, connections, and branches of cable pipe ducts
Intended for arranging bends, connections, and branches of cable pipe ducts, as well as for use as inspection devices and units for operational access to the equipment placed inside the manholes. Recommended for use in conditions of low groundwater level.
03
03 Product range and technical specifications of ProtectorLine® BET manholes
| Name | ProtectorLine® BET-1 |
ProtectorLine® BET-2 |
ProtectorLine® BET-2,5 |
ProtectorLine® BET-3 |
ProtectorLine® BET-3,5 |
ProtectorLine® BET-4 |
ProtectorLine® BET-5 |
|||
| Standard wheel load | 10(80) |
10(80) |
10(80) |
10 | 80 | 10(80) | 10 | 80 | 10 | 80 |
| Frost resistance |
F200 (200 freeze-thaw cycles) for manholes made of B25 concrete F100 (100 freeze-thaw cycles) for manholes made of B20 concrete |
|||||||||
| Watertightness |
W8 (0,8 MPa) for manholes made of B25 concrete W4 (0,4 MPa) for manholes made of B20 concrete |
|||||||||
| Quantity and dimensions of openings in side walls, mm | 2, 220х220 each | 2, 220х240 each | 2, 440х1200 each | 6, 420х480 each | 6, 420х800 each | 6, 440х1000 each | 6, 560х980 each | 6 по 560х980 each | 6, 645х980 each | 6, 645х980 each |
| Quantity and dimensions of openings in end walls, mm | 2, 220х220 each |
2, 220х240 each |
2, 440х1200 each |
2, 420х800 each |
2, 420х800 each |
2, 440х1000 each |
- | - | - | - |
| Length, mm | 1350 |
1350 |
1350 |
1950 | 1950 | 1950 | 2390 | 2390 | 2990 | 2990 |
| Width, mm | 1030 | 1030 | 1030 | 1160 | 1160 | 1160 | 1300 | 1300 | 1600 | 1600 |
| Height, mm | 845 | 1560 | 1560 | 1760 | 1760 | 1760 | 1980 | 2000 | 2000 | 2020 |
| Inspection opening diameter, mm | 600 | 600 | 600 | 600 | 600 | 600 | 600 | 600 | 600 | 600 |
| Wall thickness, mm | 70-80 | 70-80 | 70-80 | 70-80 | 70-100 | 70-100 | 70-100 | 70-100 | 70-100 | 70-120 |
| Destructive load, t | 14 | 14 | 14 | 4,9 | 14 | 14 | 4,9 | 14 | 4,9 | 14 |
| Possibility of installation under roads | да | да | да | нет | да | да | нет | да | нет | да |
| Weight, kg | 1100 | 1500 | 1500 | 2050 | 2400 | 2400 | 3400 | 3550 | 4950 | 5350 |
04
04
Standart
documentation
- TU 23.61.12-013-39082310-2022
- GOST 26633 (for concrete)
05
05 Accessories
- Support plates
- Load relief slabs
- Support rings
- Cable supports and brackets
- Cast iron manhole lid
- Lid locking devices
06
06
Example wording for categories
or technical specifications:
Manhole
Item name
PROTECTORLINE
Trade name
BET
Manhole design
-
4
Manhole type size
-
80
Standart wheel load NK-80
G
Plain manhole
E
Supplied with cleaning brush
K
Supplied with brackets
В25KS
Manhole version
TU 23.61.12-013-39082310-2022
Technical specification reference number
-
PROTECTORLINE BET-4-80 G E K B25KS manhole TU 23.61.12-013-39082310-2022
Reinforced concrete cable manhole for cable duct installation
07
07
Main
characteristics
Operating temperature
- Long-term, for the entire service life: -60 to 60°С
Installation specifics
- The manhole installation depth (from the top edge of the manhole to the ground surface) shall be minimum 250 mm in the pedestrian zone and minimum 330 mm in the roadway. The manhole cover is raised to the required height above the manhole slab surface using reinforced concrete support rings of KO-1; KO-1.5; KO-0.5 types, as well as segments.
