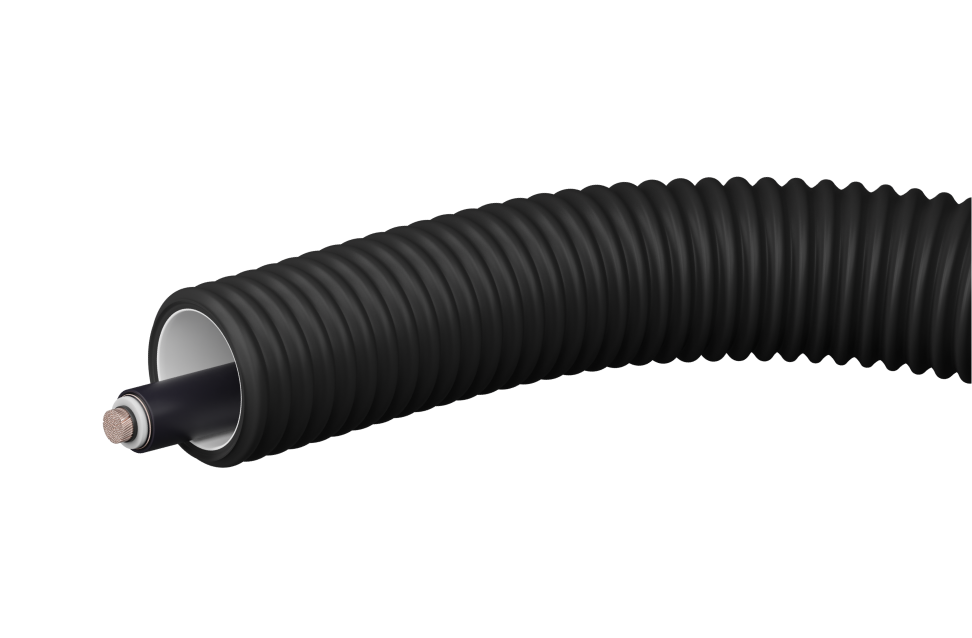

ProtectorFlex® PK pipes
Corrugated, UV-resistant, with an inner and outer layer of FV-0 category, heat-resistant, up to 500 kV
For arranging in conditions where pipes are subject to requirements of increased flexibility and resistance to UV radiation
01 Description
ProtectorFlex® PK pipes are dual-layer heat-resistant pipes of increased flexibility made from a polymer compound with special inner and outer layers of FV-0 category, with increased resistance to ultraviolet exposure.
Can be supplied with a drawstring (steel wire in the pipe).
Design
- Inner layer: smooth, flame-resistant
- Outer layer: corrugated, flame-resistant, with increased UV-resistance
(at least 50 years)
Key advantages
- With inner and outer layers of FV-0 category
- Possess increased resistance to UV-radiation
- Heat-resistant throughout the entire service life
- Mechanical strength throughout the entire service life
- Connection via butt couplers or ProtectorFlex® TAP transition adapters
- Flexibility allows cable line bends to be created in areas where the bend radius of smooth pipes is insufficient
- Resistant to ignition by a heated wire at a temperature of 960°С
02 Application area
Mechanical protection of high-voltage cable lines
Intended for mechanical protection of high-voltage cable lines up to 500 kV during their installation in conditions where pipes are subject to requirements of increased flexibility, resistance to UV radiation, and flame-resistant (FV-0 category).
Laying methods
- Open-cut installation
- Open installation
- Installation on structures
Comply with the rules for electrical installation design (PUE)
Following PUE, installation of cables with a voltage of 1 kV and above on bridges, overpasses, and in tunnels is permitted only using non-combustible materials.
Included in the Cost Estimate Standards Database
Included in the Construction Resources Classifier (CRC), resource codes: 22.21.21.129.59.1.24.04-0028-000 to 22.21.21.129.59.1.24.04-0030-000.
03 Product range of ProtectorFlex® PK pipes
| Pipe outer diameter D, mm |
Pipe inner diameter Di, mm |
| 110 | 93 |
| 160 | 136 |
| 200 | 169 |
04 Technical specifications of ProtectorFlex® PK pipes
| Mechanical characteristics | Value |
| Nominal ring stiffness SN, kN/m2 | 6 |
| Compressive strength, N | 450 |
|
Impact resistance |
Light (Code L) |
|
Flexural resistance |
Flexible |
| Minimum bending radius at 20°C | Minimum 6D* |
* D is the outer diameter of the pipe.
05
Standart
documentation
- TU 2248-001-34311042-2015
06
Example wording for categories
or technical specifications:
- PROTECTORFLEX PK 110 SN6 T110°C pipe TU 2248-001-34311042-2015
Dual-layer heat-resistant corrugated polymer pipe, UV-resistant, with a flame-resistant inner layer (FV-0 category), with a flame-resistant outer layer (FV-0 category), for installation and protection of cable lines up to 500 kV - PROTECTORFLEX PK 110 SN6 T110°C pipe with drawstring TU 2248-001-34311042-2015
Dual-layer heat-resistant corrugated polymer pipe, UV-resistant, with a flame-resistant inner layer (FV-0 category), with a flame-resistant outer layer (FV-0 category), with a drawstring, for installation and protection of cable lines up to 500 kV
07
Main
characteristics
Operating temperature
- Long-term, for the entire service life: from 70 to 110°C
- In overload mode of cable lines up to 120°C (for 8 hours a day)
- In short-circuit mode up to 250°C on the cable core and 350°C on the cable screen
Shipping length
Standard shipping length is a section 6 m (12 m) long or coils of agreed length up to 100 m for pipe diameters up to 200 mm.
08 Accessories
ProtectorFlex® UVK cable seals
Polymer, watertight, heat-resistant, one-phase
For sealing the space between the cable and the pipe
“Pipe-to-pipe” 40-200 connectors
Polymer, watertight, UV-resistant
For watertight connection of corrugated pipes with outer diameters of 40 to 200 mm
