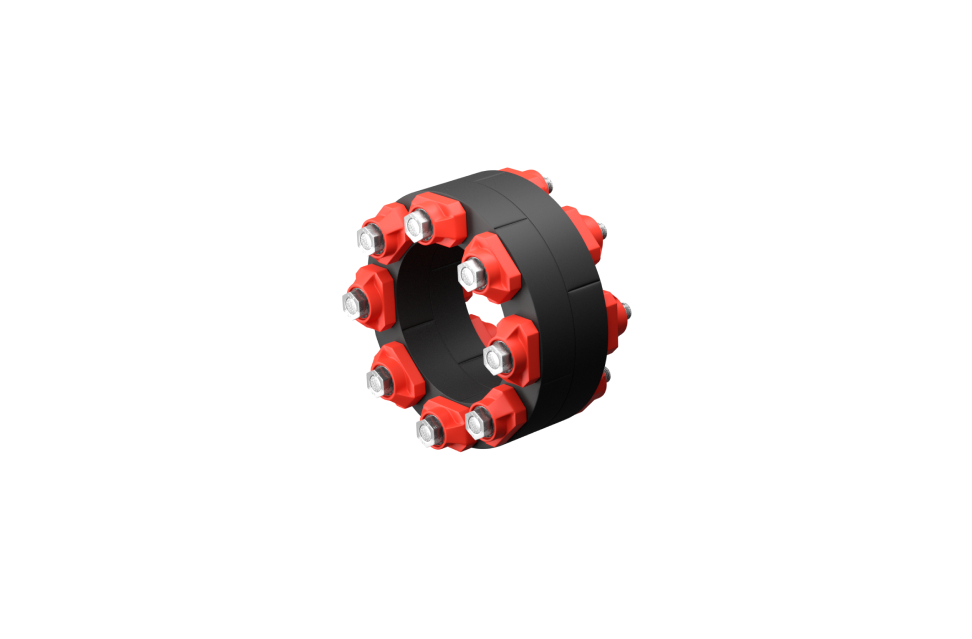

ProtectorFlex® UVK cable seals
Polymer, watertight, heat-resistant, one-phase
For sealing the space between the cable and the pipe
01 Description
ProtectorFlex® UVK cable seal consists of similar elements and has a link-type structure. The design is split, which means seals can be installed on-site without pre-assembly.
(at least 50 years)
Key advantages
- Ensure the tightness of the pipe with the cable inside (IP68 protection according to GOST 14254-2015)
- Feature a split design intended for epeated use
- Keep the cable centered within the pipe preventing mechanical damage to cable sheath
- Corrosion-proof
- Do not form a closed metal loop
- On-site installation – no pre-assembly required
- Elastic elements are made of heat-resistant elastomer
- Metal elements are made of stainless steel
- Easy to install
02 Application area
Reliable sealing and protection of the cable sheath
Intended for sealing the space between the cable and the pipe. The seal prevents the ingress and accumulation of groundwater in the pipes, while also ensuring that cables can be extracted without hindrance for repair or replacement.
Included in the TSN-2001 cost estimate standards database
In accordance with Order No. MKE-OD/21-79 of the Moscow City Committee for Pricing Policy in Construction and State Examination of Projects dated October 19, 2021, the products are included in the TSN-2001 database of cost-estimating standards under resource codes 1.12-5-1142 through 1.12-5-1157.
03 Product range of ProtectorFlex® UVK*
| Seal name | Pipe outer diameter D, mm |
|
ProtectorFlex® UVK 63 cable seal |
63 |
|
ProtectorFlex® UVK 75 cable seal |
75 |
| ProtectorFlex® UVK 90 cable seal | 90 |
| ProtectorFlex® UVK 110 cable seal | 110 |
| ProtectorFlex® UVK 125 cable seal | 125 |
| ProtectorFlex® UVK 140 cable seal | 140 |
| ProtectorFlex® UVK 160 cable seal | 160 |
| ProtectorFlex® UVK 180 cable seal | 180 |
| ProtectorFlex® UVK 200 cable seal | 200 |
| ProtectorFlex® UVK 225 cable seal | 225 |
|
ProtectorFlex® UVK 280 cable seal |
280 |
* Custom products of required sizes can be manufactured upon request. Upon request of non-standard dimensions, the external appearance and design of the seal may differ from those shown in the catalog.
04
Standart
documentation
- TU 2531-001-34311042-2015
05
Example wording for categories
or technical specifications:
- PROTECTORFLEX UVK 225 cable seal TU 2531-001-34311042-2015
Polymer watertight heat-resistant cable seal
06
Main
characteristics
Operating temperature
- Long-term, for the entire service life: -45 to 110°С
Installation specifics
- Sequential, uniform tightening of the bolts on each link expands the seal, filling the space between the cable and the pipe
