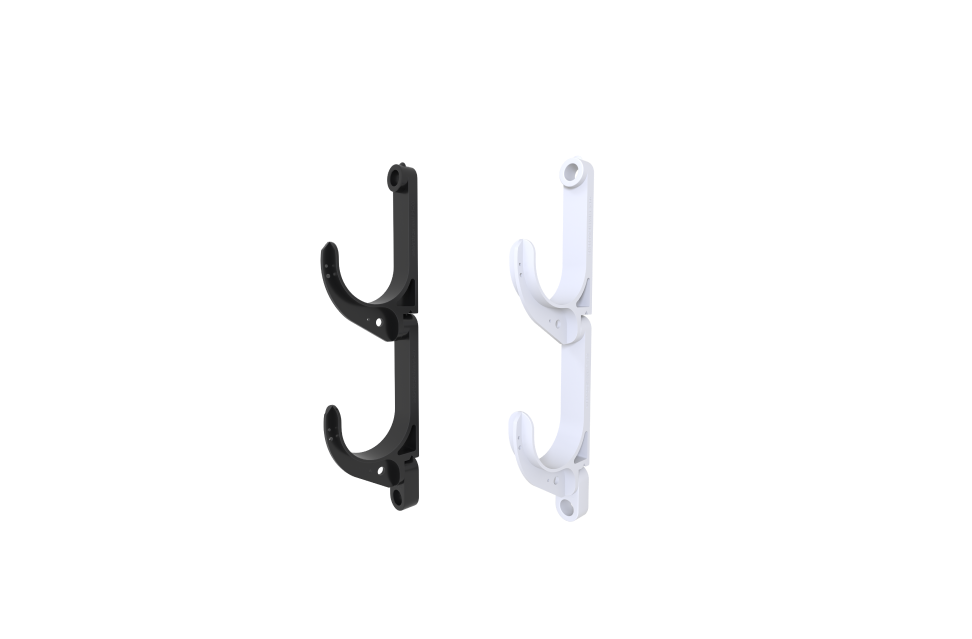

Energotek KKN hangers

Polymer, UV-resistant

For suspended fastening of pipes, as well as cables

Description Sizes Characteristics Submit a request

01 Description

Energotek KKN hangers are made from polymer materials. The hangers are designed to securely engage with one another, preventing arbitrary rotation during operation. The KKN fastener ensures reliable fastening of a section consisting of one or several hangers to the supporting structure.

Design

The Energotek KKN hangers system consists of hangers and a fastener. If required, hangers can be added to or removed from the system. The KKN fastener ensures secure attachment of a section consisting of one or more hangers to the supporting structure.

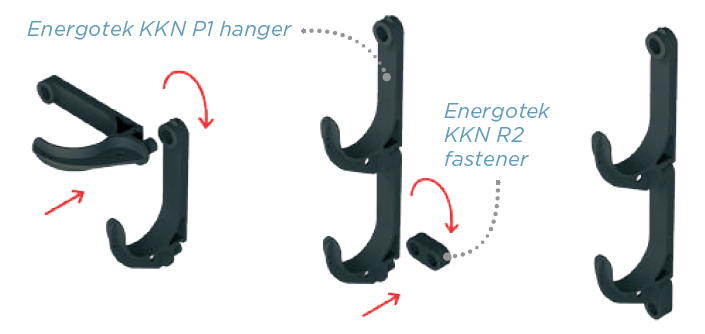

Energotek KKN hangers.png Energotek KKN hanger assembly drawing

years 0 + Long service life
(at least 30 years)

Key advantages

Resistant to aggressive and chemically active environments (seawater, acids, alkalis, etc.)
UV-resistant
Dielectric properties: specific volumetric electrical resistance of minimum 10¹⁵ Ohm∙cm
Fire-safe
Easy to install

02 Application area

Suspended fastening of pipes

Intended for suspended fastening of pipes, as well as cables arranged along bridges, viaducts, overpasses, in shafts and tunnels. Durable under UV radiation, aggressive and chemically active environments.

03 Product range of Energotek KKN hangers

Name	Maximum cable diameter, mm	Maximum load, kg
Energotek KKN R1-9 hanger	9	80
Energotek KKN R1-18 hanger	18	140
Energotek KKN R1-28 hanger	28	180
Energotek KKN R1-38 hanger	38	180
Energotek KKN R1-50 hanger	50	210
Energotek KKN R1-68 hanger	68	310
Energotek KKN R1-80 hanger	80	380
Energotek KKN R1-115 hanger	115	380

04 Standart
documentation

TU 22.29.29-008-34311042-2017

05 Example wording for categories
or technical specifications:

Hanger Item name

ENERGOTEK Trade name

KKN R1 Product design

80 Maximum outer diameter of pipe (cable)

Т100°С Maximum operating temperature

TU 22.29.29-008-34311042-2017 Technical specification reference number

ENERGOTEK KKN P1-80 T100°C hanger TU 22.29.29-008-34311042-2017
Polymer UV-resistant hanger
ENERGOTEK KKN R2 T100°C fastener TU 22.29.29-008-34311042-2017
Polymer UV-resistant hanger fastener

06 Main
characteristics

Operating temperature

Long-term, for the entire service life: -60 to 100°С
