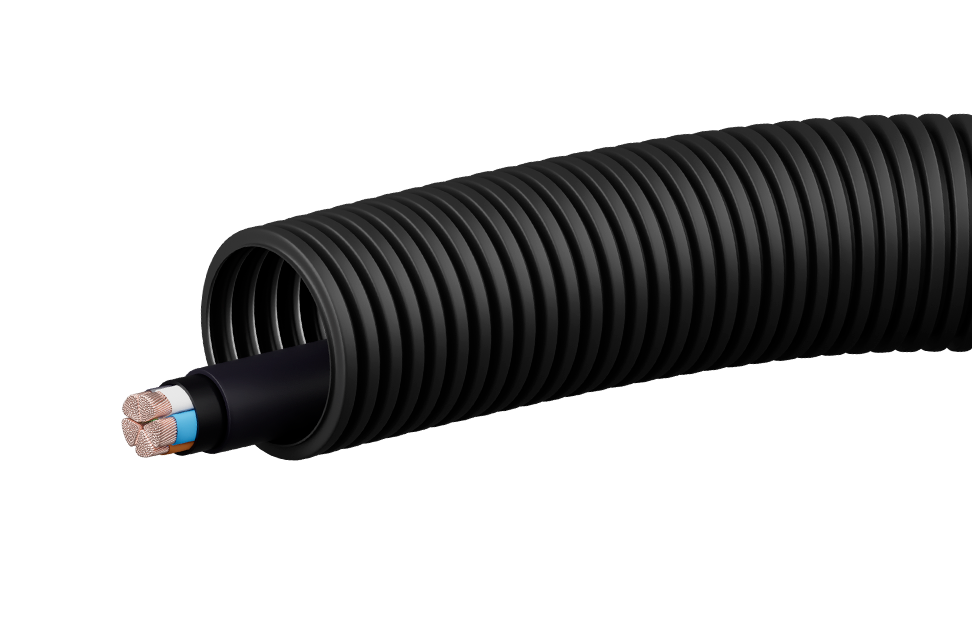

ProtectoLine® NG pipes
Of FV-0 category, corrugated, flexible, UV-resistant
For laying and mechanical protection of low-voltage and control cables, as well as FO communication lines on constructions and artificial structures
01 Description
ProtectorLine® NG are corrugated pipes made of polymer UV-resistant compound, category FV-0.
Can be supplied with a steel drawstring in the pipe for cable pulling.
(at least 50 years)
Key advantages
- Resistant to aggressive and chemically active environments (seawater, acids, alkalis, etc)
- UV-resistant
- Climatic version and installation category according to GOST 15150-69: UHL1 (climatic category: cold/temperature), M1 (standard vibration and shock resistant
- Dielectric properties
- Fire safety: flame-resistant (FV-0 category)
- Mechanical strength throughout the entire service life
02 Application area
Laying and mechanical protection of low-voltage and control cables, as well as FO communication lines on constructions and artificial structures
Intended for laying and mechanical protection of low-voltage and control cables, as well as FO communication lines on constructions and artificial structures exposed to UV- radiation, aggressive and chemically active environments.
Laying methods
- Open-cut installation
- Open installation
- Installation on structures
03 Product range of ProtectorLine® NG pipes
|
Pipe outer diameter D, mm |
Minimum inner diameter Di, mm |
|---|---|
| 40 | 32 |
| 50 | 41 |
| 63 | 52 |
| 75 | 61 |
| 90 | 73 |
| 110 | 93 |
| 125 | 105 |
| 140 | 115 |
| 160 | 136 |
04 Technical specifications of ProtectorLine® NG pipes
| Parameter |
Value |
||||||
|---|---|---|---|---|---|---|---|
|
Nominal ring stiffness, kN/m2 |
6 | ||||||
|
Specific volumetric electrical resistance, Ohm•cm |
1015 |
||||||
|
Compressive strength, N |
250/450 | ||||||
|
Impact resistance |
Light (Code L) | ||||||
|
Flexural resistance |
Flexible | ||||||
|
Minimum bending radius |
6D* |
||||||
*D is the outer diameter of the pipe.
05
Standart
documentation
- GOST R IEC 61386.1-2014
- TU 22.21.21-008-39082310-2020
06
Example wording for categories
or technical specifications:
- PROTECTORLINE NG 63/52 pipe SN6 TU 22.21.21-008-39082310-2020
Polymer corrugated single-layer pipe, flexible, UV-resistant, flame-resistant (FV-0 category), resistant to aggressive and chemically active environments - PROTECTORLINE NG 63/52 SN6 pipe with drawstring TU 22.21.21-008-39082310-2020
Polymer single-layer corrugated pipe, flexible, UV-resistant, flame-resistant (FV-0 category), resistant to aggressive and chemically active environments, with a drawstring
07
Main
characteristics
Operating temperature
- Long-term, for the entire service life: -70 to 60°С
Shipping length
Pipes are supplied in coils up to 50 m long.
08 Accessories
“Pipe-to-pipe” 16-50 connectors
Polymer, watertight, UV-resistant
For watertight connection of corrugated pipes
“Pipe-to-pipe” 40-200 connectors
Polymer, watertight, UV-resistant
For watertight connection of corrugated pipes with outer diameters of 40 to 200 mm
Polymer, watertight, UV-resistant
For watertight bushing of corrugated pipes or cables into the housing of polymer boxes
