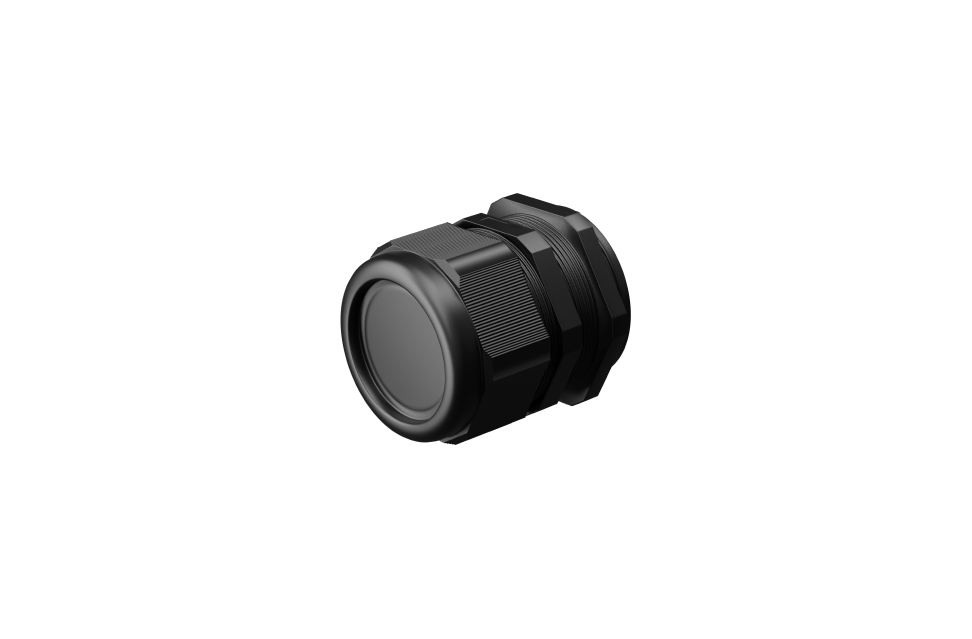

“Pipe-to-box” connectors
Polymer, watertight, UV-resistant
For watertight bushing of corrugated pipes or cables into the housing of polymer boxes
“Pipe-to-box” connectors are intended for watertight bushing of corrugated ProtectorLine® NG pipes or cables into the housing of polymer Energotek KET boxes, as well as into the bodies of other electrotechnical devices.
The sealing nut has special locking notches that prevent self-loosening due to vibrations during operation. Sealing ring ensures a tight connection between the coupler and the housing.
- Sealing nut
- Sealing element with a protecting membrane
- Cable termination housing
- Sealing ring
- Locking nut
(at least 30 years)
Key advantages
- Resistant to aggressive and chemically active environments (seawater, acids, alkalis, etc.);
- UV-resistant
- Dielectric properties: specific volumetric electrical resistance of minimum 1015 Ohm∙cm;
- Fire-safe
- Ensure sealing of connections
- IP67 protection according to GOST 14254-2015
- Easy to install
02 Application area
Watertight bushing of corrugated pipes
Intended for watertight bushing of corrugated ProtectorLine® NG pipes or cables into the housing of polymer Energotek KET boxes, as well as into the bodies of other electrotechnical devices.
03 Product range of “pipe-to-box” couplers
| Name | Outer diameter of corrugated pipes (cables), mm |
| D16 connector | 16 |
| D20 connector | 20 |
| D25 connector | 25 |
|
D32 connector |
32 |
|
D40 connector |
40 |
| D50 connector | 50 |
04
Example wording for categories
or technical specifications:
- D20 T90°C connector
Connector of “pipe-to-box” type, polymer, watertight, UV-resistant
05
Main
characteristics
Operating temperature
- Long-term, for the entire service life: -60 to 90°С
06 Recomended
Of FV-0 category, corrugated, flexible, UV-resistant
For laying and mechanical protection of low-voltage and control cables, as well as FO communication lines on constructions and artificial structures
