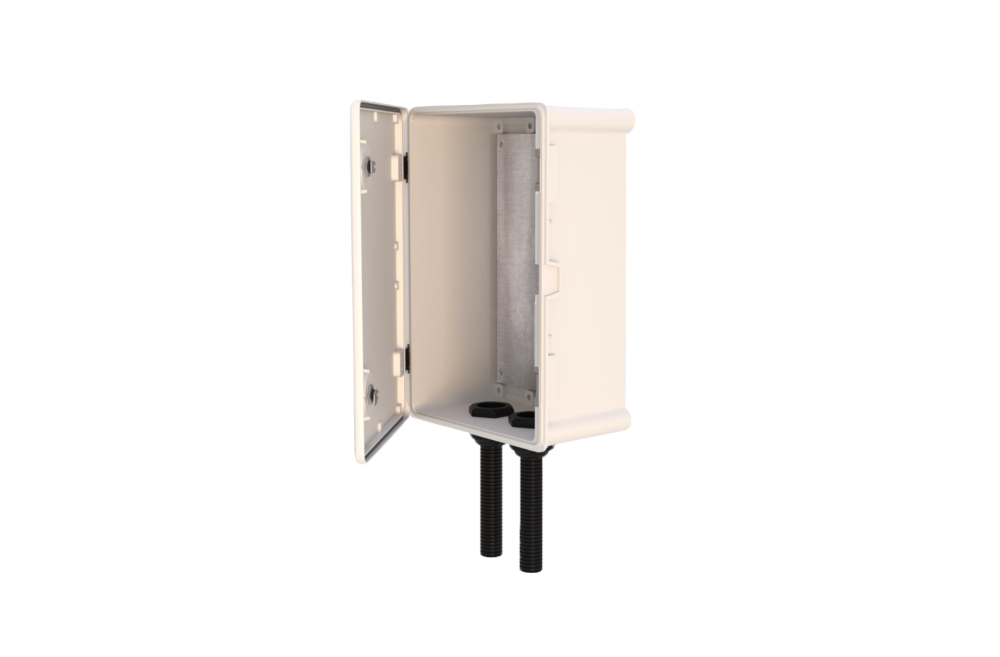

Energotek KET wall-mounted polymer link boxes
Polymer, GFRP, UV-resistant
For arranging and protecting low-voltage distribution, switching, and control equipment, metering devices
01 Description
Energotek KET polymer electrical link boxes are specialized housings designed to accommodate and protect low-voltage distribution, switching, and control equipment, as well as other electrical instruments and devices.
Energotek KET link boxes are made of GFRP compound.
Design
- One-piece body with removable mounting loops
- Cover with a pre-installed lock (a version with an inspection window is available)
- Corrosion-resistant mounting plate minimum 2 mm thick
(at least 30 years)
Key advantages
- Resistant to aggressive and chemically active environments (seawater, acids, alkalis, etc.)
- UV resistant
- Not subject to residual deformation
- Climatic version and installation category according to GOST 15150-69: UHL1 (climatic category: cold/temperature), M1
- Dielectric properties: Specific volumetric electrical resistance of minimum 1015 Ohm•cm
- IP65 protection rating against dust and moisture according to GOST 14254-2015
- Fire-safe
- Protection against mechanical impact: IK10
- No blocking radio and GSM signals
- Easy to install
- Light weight
- Colour stability throughout the entire operation life
- Different colors are possible
- Can be assembled and completed with equipment at the factory
- Do not require grounding
02 Application area
Arranging and protecting low-voltage distribution, switching, and control equipment, metering devices
Intended for arranging and protecting low-voltage distribution, switching, and control equipment, metering devices, and other devices exposed to UV radiation, aggressive and chemically active environments.
03 Product range of Energotek KET wall-mounted polymer link boxes*
| Name | Width, mm | Height, mm | Depth, mm | Weight, kg |
| Energotek KET-230x330х150 | 230 | 330 | 150 | 3 |
| Energotek KET-300x400х200 | 300 | 400 | 200 | 4,15 |
| Energotek KET-350x500х220 | 350 | 500 | 220 | 7,5 |
| Energotek KET-400x600х220 | 400 | 600 | 220 | 9 |
| Energotek KET-500x700х220 | 500 | 700 | 220 | 11,5 |
| Energotek KET-600x800х240 | 600 | 800 | 240 | 18,5 |
| Energotek KET-600x800х350 | 600 | 800 | 350 | 23,5 |
* Dimensions exclude protruding parts of flanged plugs, handles, and transposition parts.
04
Standart
documentation
- TU 27.33.13-001-34311042-2018
- GOST IEC 62208-2013
05 Delivery kit
Upon request Energotek KET link boxes are equipped with:
- Watertight pipe terminations
- Electrical equipment
- Fastening elements
06
Example wording for categories
or technical specifications:
- ENERGOTEK KET-300x400x200 NG UHL1 T80°C box TU 27.33.13-001-34311042-2018
Wall-mounted electrical polymer box, corrosion- resistant, GFRP, UV-resistant
07
Main
characteristics
Operating temperature
- Long-term, for the entire service life: -60 to 80°С
Fastening methods
- To the wall
- To the column
- To metal constructions
- In a recess
