Energotek KET floor-mounted polymer electrical cabinets
Polymer, GFRP, UV-resistant
For arranging and protecting low-voltage distribution, switching, and control equipment, metering devices
01 Description
Energotek KET polymer electrical link boxes are specialized housings designed to accommodate and protect low-voltage distribution, switching, and control equipment, as well as other electrical instruments and devices.
Energotek KET link boxes are made of GFRP compound.

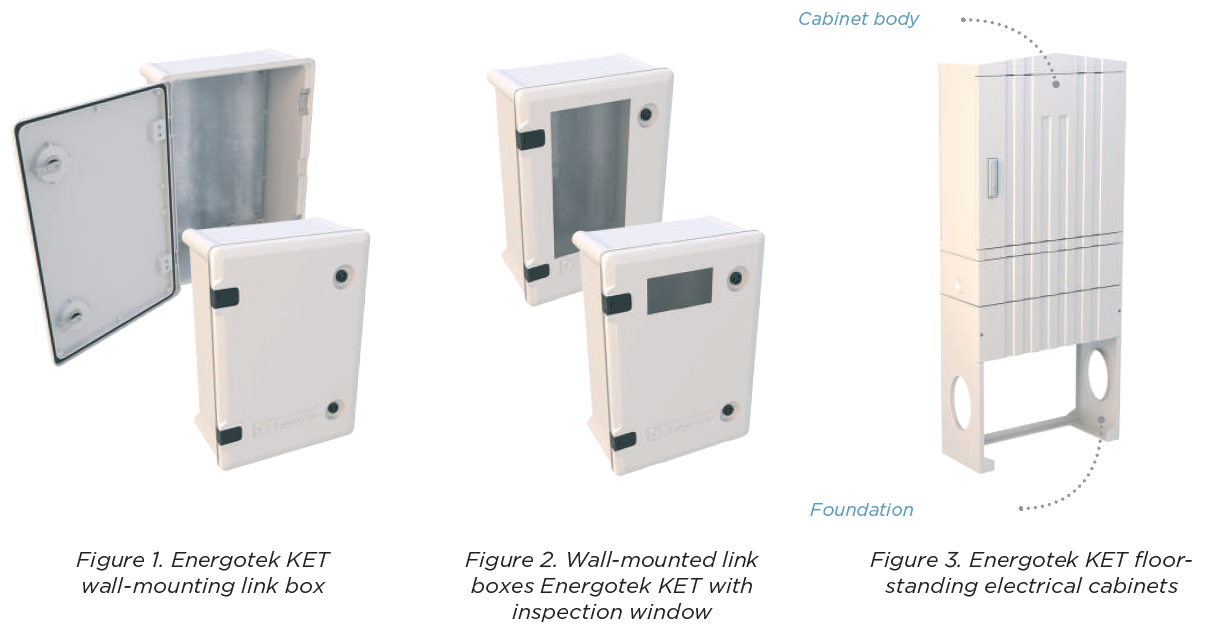

Design
- One-piece body with removable mounting loops
- Foundation part
- Cover with a pre-installed lock (a version with an inspection window is available)
- Corrosion-resistant mounting plate minimum 2 mm thick
(at least 30 years)
Key advantages
- Resistant to aggressive and chemically active environments (seawater, acids, alkalis, etc.)
- UV resistant
- Not subject to residual deformation
- Climatic version and installation category according to GOST 15150-69: UHL1 (climatic category: cold/temperature), M1
- Dielectric properties: Specific volumetric electrical resistance of minimum 1015 Ohm•cm
- IP54 protection against dust and moisture according to GOST 14254-2015
- Fire-safe
- Protection against mechanical impact: IK10
- No blocking radio and GSM signals
- Easy to install
- Light weight
- Colour stability throughout the entire operation life
- Different colors are possible
- Can be assembled and completed with equipment at the factory
- Do not require grounding
02 Application area
Arranging and protecting low-voltage distribution, switching, and control equipment, metering devices
Intended for arranging and protecting low-voltage distribution, switching, and control equipment, metering devices, and other devices exposed to UV radiation, aggressive and chemically active environments.
03 Product range of Energotek KET floor-mounted polymer electrical cabinets*
| Name | Width, mm | Height, mm | Depth, mm | Weight, kg |
| Energotek KET-600x1770х320 | 600 | 1770 | 320 | 46 |
| Energotek KET-800х1770x320 | 800 | 1770 | 320 | 48 |
* Dimensions exclude protruding parts of flanged plugs, handles, and transposition parts.
04
Standart
documentation
- TU 27.33.13-001-34311042-2018
- GOST IEC 62208-2013
05
Example wording for categories
or technical specifications:
- ENERGOTEK KET-800x1720x320 NG UHL1 T80°C cabinet TU 27.33.13-001-34311042-2018
Floor-mounted electrical cabinet, GFRP, UV- resistant
06
Main
characteristics
Operating temperature
- Long-term, for the entire service life: -60 to 80°С
Fastening methods
- To the floor
- To the wall
- To the column
- To metal constructions
- In a recess
