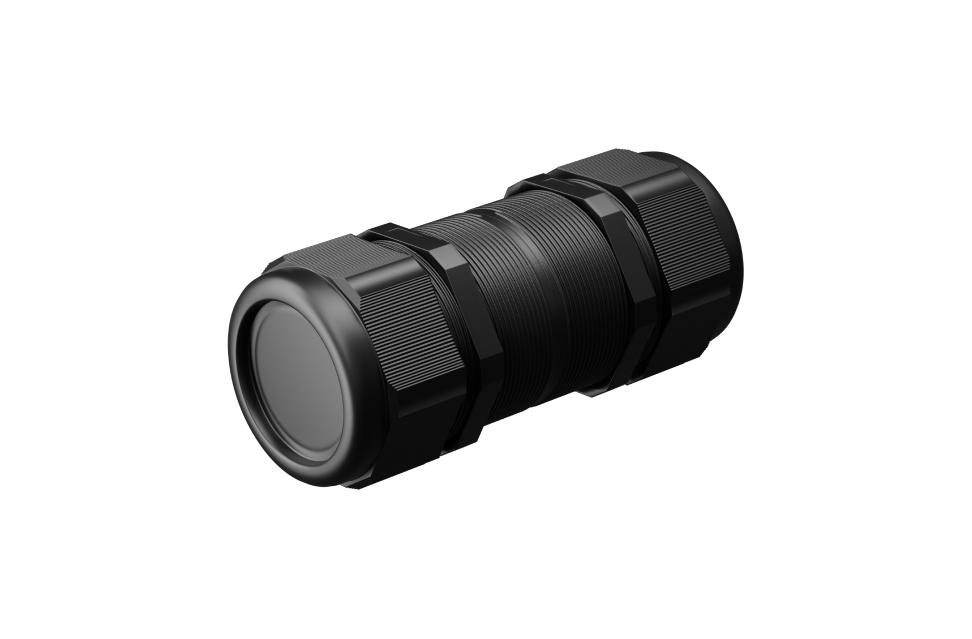

“Pipe-to-pipe” 16-50 connectors
Polymer, watertight, UV-resistant
For watertight connection of corrugated pipes
01
“Pipe-to-pipe” 16-50 connectors are intended for watertight connection of corrugated ProtectorLine® NG pipes.
The sealing nut has special locking notches that prevent self-loosening due to vibrations during operation.
- Sealing nut
- Sealing element with a protecting membrane
- Cable termination housing
years
0
+
Long service life
(at least 30 years)
(at least 30 years)
Key advantages
- Resistant to aggressive and chemically active environments (seawater, acids, alkalis, etc.);
- UV-resistant
- Dielectric properties: specific volumetric electrical resistance of minimum 1015 Ohm∙cm;
- Fire-safe
- Ensure sealing of connections
- IP67 protection according to GOST 14254-2015
- Easy to install
02
02 Application area
Watertight connection of corrugated pipes
Intended for watertight connection of corrugated ProtectorLine® NG pipes.
03
03 Product range of “pipe-to-pipe” couplers
| Name | Outer diameter of corrugated pipes (cables), mm | ||||||
|---|---|---|---|---|---|---|---|
| D16 connecting coupler | 16 | ||||||
|
D20 connecting coupler |
20 | ||||||
|
D25 connecting coupler |
25 | ||||||
|
D32 connecting coupler |
32 | ||||||
| D40 connecting coupler | 40 | ||||||
| D50 connecting coupler | 50 | ||||||
04
04
Example wording for categories
or technical specifications:
Coupler
Item name
Connecting
Product application
D50
Outer diameter of connected pipes (cables)
Т90°С
Maximum operating temperature
- D50 T90°C coupler
“Pipe-to-pipe” connecting coupler polymer, watertight, UV-resistant
05
05
Main
characteristics
Operating temperatre
- Long-term, for the entire service life: -60 to 90°С
