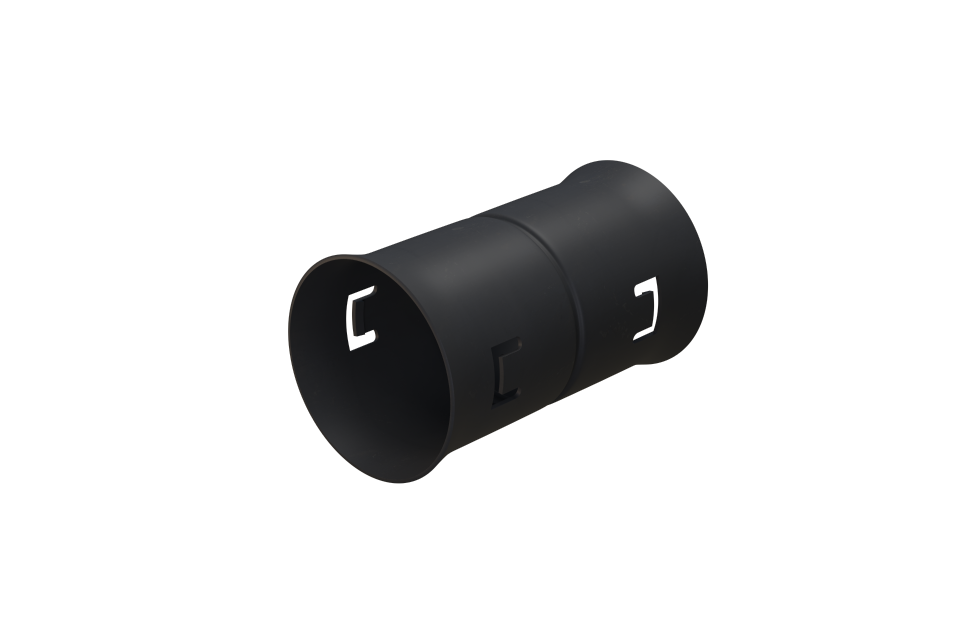

“Pipe-to-pipe” 40-200 connectors
Polymer, watertight, UV-resistant
For watertight connection of corrugated pipes with outer diameters of 40 to 200 mm
01
01 Description
Design
Consists of a cylindrical coupler body with internal latches on its walls that secure the corrugated pipe inside the coupler. The sealing rings included in the delivery kit provide a high degree of sealing tightness for the connection.
- Sealing ring
- Coupler body
- Sealing ring
years
0
+
Long service life
(at least 30 years)
(at least 30 years)
Key advantages
- Ensure sealing of connections
- IP55 protection according to GOST 14254-2015
- Resistant to aggressive and chemically active environments (seawater, acids, alkalis, etc.)
- Dielectric properties: specific volumetric electrical resistance of minimum 1015 Ohm∙cm
- Easy to install
02
02 Application area
Watertight connection of corrugated pipes
Intended for watertight connection of corrugated pipes with outer diameters of 40 to 200 mm
03
03 Product range of “pipe-to-pipe” 40-200 connectors
| Name |
Outer diameter of corrugated pipes (cables), mm |
||||||
|---|---|---|---|---|---|---|---|
| D40 connecting coupler | 40 | ||||||
| D50 connecting coupler | 50 | ||||||
| D63 connecting coupler | 63 | ||||||
| D75 connecting coupler | 75 | ||||||
| D90 connecting coupler | 90 | ||||||
|
D110 connecting coupler |
110 | ||||||
| D125 connecting coupler | 125 | ||||||
| D140 connecting coupler | 140 | ||||||
|
D160 connecting coupler |
160 | ||||||
|
D200 connecting coupler |
200 | ||||||
04
04 Minimum pipe bending radius
| Кольцевая жесткость SN, кН/м2 | Минимально допустимый радиус изгиба в зависимости от температуры при укладке | |||
|---|---|---|---|---|
| 125D | 125D | 125D | ||
| Менее 2 | 125D | 125D | 125D | |
| от 4 до 8 | 125D | 125D | 125D | |
| Более 16 | 125D | 125D | 125D | |
05
05
Example wording for categories
or technical specifications:
Coupler
Item name
Connecting
Product application
D110
Outer diameter of connected pipes
T90°С
Maximum operating temperature
- Coupler D110 T90°С
“Pipe-to-pipe” connecting coupler polymer, watertight, UV-resistant
06
06
Main
characteristics
Operating temperature
- Long-term, for the entire service life: -40 to 90°С
