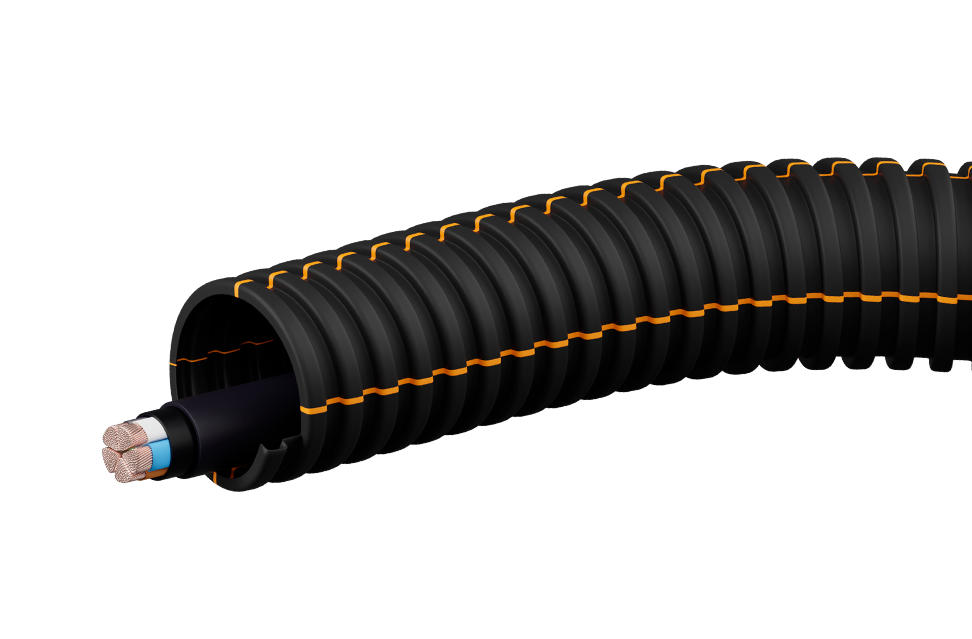

ProtectorLine^® KN (I) pipes

With inner FV-0 layer, single-layer, flexible, increased strength, spiral-type

For mechanical protection of power cable lines, control cables, and FO communication lines. For applications requiring flame-resistance

Flame-resistance (FV-0 category)

Description Sizes Characteristics Submit a request

01 Description

ProtectorLine^® KN (I) are single-layer pipes of a special spiral-type shape contributing to high ring stiffness indicators with a minimal product weight.

Can be supplied with a steel drawstring in the pipe for cable pulling.

years 0 + Long service life
(at least 30 years)

Key advantages

Increased strength: high ring stiffness up to SN48 and possibility to be laid in trenches (with compaction needed), under roads, crossings
Flame-resistance (FV-0 category)
Flexibility: small-radius bending is possible
Mechanical strength throughout the entire service life
Resistance to aggressive and chemically active environments
Light weight: construction vehicles are not required for installation

02 Application area

Mechanical protection of power cable lines, control cables, and FO communication lines

Intended for mechanical protection of power cable lines, control cables, and FO communication lines. Used for open-trench installation, including along routes with complex geometry, where pipes shall have both flexibility and mechanical strength, as well as for applications requiring flame-resistant inner layer.

Laying method

Open-cut installation

03 Product range of ProtectorLine^® KN (I) pipes

Pipe outer diameter D, mm	Ring stiffness SN, kN/m²
	12	16	22	24	32	48
	Minimum inner diameter of the pipe D_i, mm
63	47
75	56
90	67
110	82
125	94
140	106
160	120
180	135

04 Technical properties of ProtectorLine^® КN (I) pipes

Parameter	Value
Types of cables	Power, low-voltage CL, and FOCL
Climatic version and installation category according to GOST 15150-69	UHL1 (climatic category: cold/ temperature), M1 (standard vibration and shock resistant)
Pipe outer diameter, mm	63 to 180
Ring stiffness SN, kN/m²	12, 16, 22, 24, 32, 48
Flexural resistance according to GOST R IEC 61386.24-2014	Flexible
Minimum bending radius	4D*
Electrical resistance, MOhm	Minimum 100
Compressive strength according to GOST R IEC 61386.24-2014, N	up to 3000
Impact resistance according to GOST R IEC 61386.24-2014	Normal (code N)
Flame-resistant inner layer	FV-0
Resistance of the inner layer to ignition by a heated wire, °С	Minimum 960
Resistance to oils, gasoline, groundwater, saltwater	Resistant

* D is the outer diameter of the pipe.

05 Standart
documentation

TU 22.21.21-008-39082310-2020
GOST R IEC 61386.24-2014

06 Example wording for categories
or technical specifications:

Pipe Item name

PROTECTORLINE Trade name

KN Pipe design

(

I Quantity of layers

) -

110 Nominal outer diameter

82 Minimal inner diameter

SN48 Nominal ring stiffness

TU 22.21.21-008-39082310-2020 Technical specification reference number

PROTECTORLINE KN (I) 110/82 SN48 pipe TU 22.21.21-008-39082310-2020
Polymer spiral-type single-layer pipe, flexible, of increased strength, with flame-resistant inner layer (FV-0 category), for laying and protecting power, low-current, and optical cable lines
PROTECTORLINE KN (I) 110/82 SN48 pipe with drawstring TU 22.21.21-008-39082310-2020
Polymer spiral-type single-layer pipe, flexible, of increased strength, with flame-resistant inner layer (FV-0 category), with a drawstring, for laying and protecting power, low-current, and optical cable lines

07 Main
characteristics

Operating temperature

Long-term, for the entire service life: -70 to 60°С

Shipping length

Pipes are supplied in coils or sections of agreed length.

Each coil or section is equipped with 1 ProtectorLine^® MK connecting coupler.

Installation specifics

Minimum installation temperature -15°С
Connection of building lengths is carried out by means of ProtectorLine^® MK connecting couplers
Backup pipes are sealed with ProtectorLine^® ZK cable plugs
Pipes enterProtectorLine^® PKT manholes through ProtectorLine^® KA ring-shape adapters together with ProtectorLine^® MK connecting coupler

08 Accessories

ProtectorLine^® MK couplers

Polymer, for spiral-type pipes

For connecting together piral-type pipes

ProtectorLine^® ZK caps

Polymer, for spiral-type pipes

For sealing the ends of backup spiral-type pipes

ProtectorLine^® KT spacers

Polymer, for all types of pipes

For fixing pipes when installing duct banks

ProtectorLine^® KA ring-shape adapters

Elastic

For bushing smooth-walled and spiral pipes into ProtectorLine^® PKT manholes
