ProtectorLine® KA ring-shape adapters
Elastic
For bushing smooth-walled and spiral pipes into ProtectorLine® PKT
manholes
01
01 Description

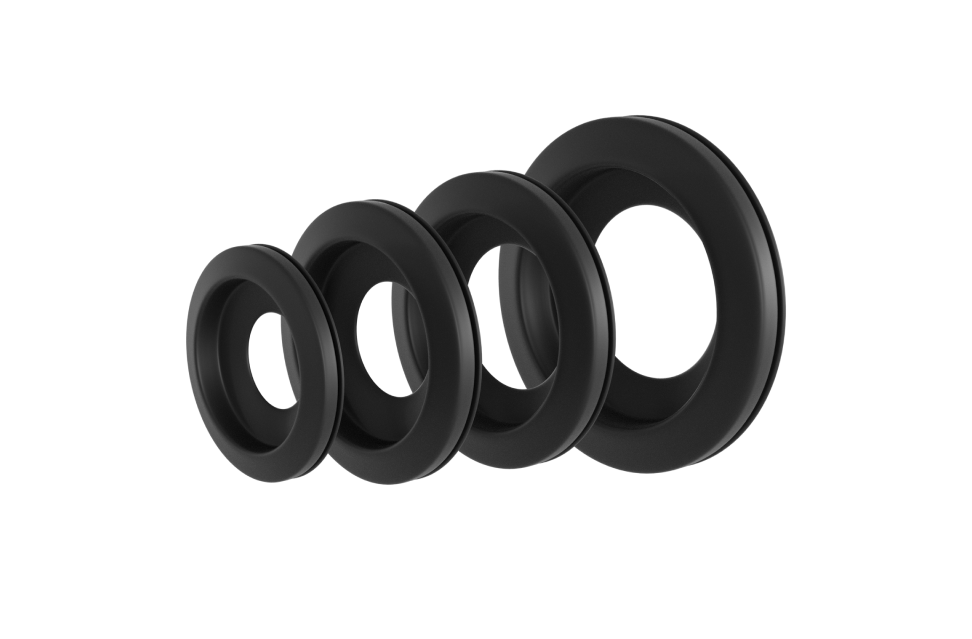

ProtectorLine® KA adapters are ring-shaped adapters made of elastomer. Adapters have a groove for installation in the manhole wall, as well as an elastic cuff that provides compression for the pipe inserted into the manhole.
years
0
+
Long service life
(at least 50 years)
(at least 50 years)
Key advantages
- Resistance to aggressive and chemically active environments
- Dielectric properties
- Watertight: IP65 reliable protection according to GOST 14254-2015
- Quick installation
02
02 Application area
Bushing smooth-walled and spiral pipes
Intended for bushing smooth-walled and spiral pipes into ProtectorLine® PKT.
03
03 Product range of ProtectorLine® КА ring-shape adapters
|
Name |
Pipe outer diameter, mm | Mounting hole diameter, mm |
| ProtectorLine® KA 25 ring-shape adapter | 25 | 28 |
| ProtectorLine® KA 32 ring-shape adapter | 32 | 35 |
| ProtectorLine® KA 40 ring-shape adapter | 40 | 44 |
| ProtectorLine® KA 50 ring-shape adapter | 50 | 54 |
| ProtectorLine® KA 63 ring-shape adapter | 63 | 68 |
| ProtectorLine® KA 75 ring-shape adapter | 75 | 82 |
| ProtectorLine® KA 90 ring-shape adapter | 90 | 107 |
| ProtectorLine® KA 110 ring-shape adapter | 110 | 121 |
04
04
Standart
documentation
- TU 22.21.21-012-39082310-2021
05
05
Example wording for categories
or technical specifications:
Ring-shape adapter
Item name
PROTECTORLINE
Trade name
KA
Adapter design
50
Outer diameter of the inserted pipe
IP65
Protection against dust and damp
TU 22.21.21-012-39082310-2021
Technical specification reference number
- PROTECTORLINE KA 50 IP65 ring-shape adapter TU 22.21.21-012-39082310-2021
Elastic ring-shape adapter for bushing pipes into manholes
06
06
Main
characteristics
Operating temperature
- Long-term, for the entire service life: -60 to 60°С
Installation specifics
- Minimum installation temperature is 5°С. Installation below 5°С requires pre-heating
- Ring adapters are installed into pre-cut holes in the manhole wall
- Holes of the required diameter are cut into the manhole body using an adjustable circle cutter, an electric drill, or a cordless screwdriver
- Clean plastic shavings from the cut holes, then install the watertight entry adapter
- Holes in the manholes should preferably be cut on the surface, followed by installing the manhole in its designed position and inserting pipes to a depth of 50–100 mm into the manhole
