ProtectorLine® PKT manholes
Polymer, cable
For arranging bends, connections, and branches of cable pipe ducts
01 Description

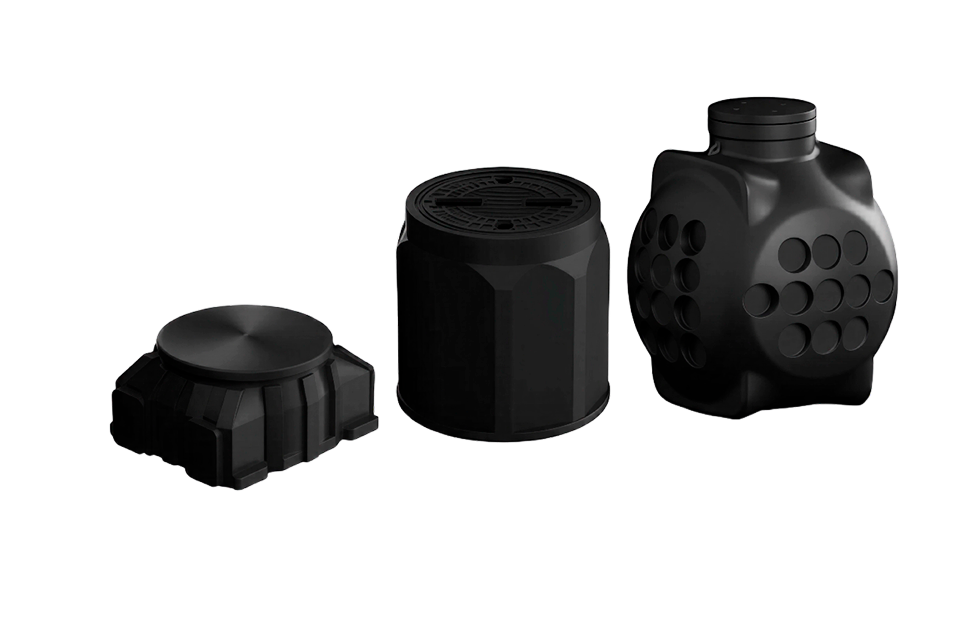

ProtectorLine® PKT manholes are rotationally molded polymer manholes, consisting of a one- piece manhole body and a cover with a threaded connection.
A rubber seal is placed between the body and the neck of the manhole. The outer side of the cover features recesses for convenient screwing and grooves for an auxiliary key, which can be used for tighter sealing of the cover to prevent unauthorized access to the manhole.
Modifications
- ProtectorLine® PKT-1360
- ProtectorLine® PKT-1360U
- ProtectorLine® PKT-880M
- ProtectorLine® PKT-880B
- ProtectorLine® PKT-575
- ProtectorLine® PKT-480
- ProtectorLine® PKOD
(at least 50 years)
Key advantages
- Resistance to aggressive and chemically active environments
- Dielectric properties
- Because of their geometry, the manholes have high strength and can be placed both in green zones and under roads
- The manhole cover has a threaded connection, making its installation easy
- Compact dimensions and light weight
- Quick and easy installation: no need for heavy construction equipment during installation work
02 Application area
Arranging bends, connections, and branches of cable pipe ducts
Intended for arranging bends, connections, and branches of cable pipe ducts, as well as for use as inspection devices and units for operational access to the equipment placed inside the manholes. Used for the construction of main and urban telecommunication and electrical networks.
03 Product range and technical specifications of ProtectorLine® PKТ manholes
| Name | ProtectorLine® PKТ-1360 | ProtectorLine® PKТ-1360U (с металлокаркасом) | ProtectorLine® PKТ-880M | ProtectorLine® PKТ-880B | ProtectorLine® PKТ-575 | ProtectorLine® PKТ-480 | ProtectorLine® PKOD |
|---|---|---|---|---|---|---|---|
| Dimensions, mm | Height — 1670 Diameter — 1360 | Height — 1670 Diameter — 1360 | Height — 750 Diameter — 880 | Height — 750 Diameter — 880 | Height — 620 Diameter — 575 | Height — 495 Diameter — 490 | Height — 418 Length — 880 Width — 745 |
| Cover diameter, mm | 570 | 570 | 580 | 630 | 390 | 360 | 686 |
| Weight, kg | 75 | 107 | 24 | 24 | 7 | 9 | 17 |
| Climatic version and installation category | UHL1 (climatic category: cold/temperature), M1 (standard vibration and shock resistant) | UHL1 (climatic category: cold/temperature), M1 (standard vibration and shock resistant) | UHL1 (climatic category: cold/temperature), M1 (standard vibration and shock resistant) | UHL1 (climatic category: cold/temperature), M1 (standard vibration and shock resistant) | UHL1 (climatic category: cold/temperature), M1 (standard vibration and shock resistant) | UHL1 (climatic category: cold/temperature), M1 (standard vibration and shock resistant) | UHL1 (climatic category: cold/temperature), M1 (standard vibration and shock resistant) |
| Protection against dust and damp | IP65 | IP65 | IP65 | IP65 | IP65 | IP65 | IP65 |
04
Standart
documentation
- TU 22.29.29-004-39082310-2020
05 Delivery kit
- Manhole
- Manhole cover
Optionally, manholes can be supplied fully assembled with:
- ProtectorLine® KA ring-shape adapters
- Metal frame (for PKT-1360U manholes)
- Cable supports and shelves (for PKT-1360U manholes)
- Cable fastenings
- Ladder (for PKT-1360 manholes)
- Materials for anchoring and strapping of manholes
06
Example wording for categories
or technical specifications:
- PROTECTORLINE PKT-1360U IP65 manhole TU 22.29.29-004-39082310-2020
Polymer cable manhole with metal frame, IP65 protection rating
07
Main
characteristics
Operating temperature
- Long-term, for the entire service life: -60 to 60°С
Installation specifics
- Minimum installation temperature -10°С
- Polymer corrugated or smooth-walled pipes enter the manhole through ring-shape adapters
- When installing under roads, the installation of relief slabs and layer-by-layer soil compaction are required
- When installing in soils with a high groundwater level, the manhole shall be anchored or strapped to a concrete foundation or reinforced concrete slab
08 Accessories
ProtectorLine® KA ring-shape adapters
Elastic
For bushing smooth-walled and spiral pipes into ProtectorLine® PKT
manholes
