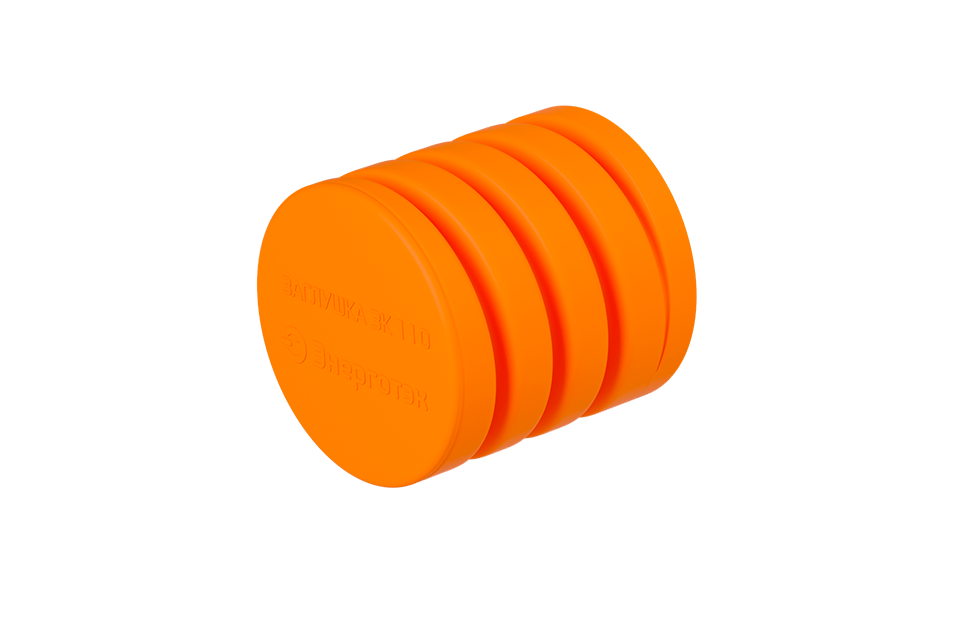

ProtectorLine® ZK caps
Polymer, for spiral-type pipes
For sealing the ends of backup spiral-type pipes
01
01 Description
ProtectorLine® ZK caps are polymer caps of spiral-type shape.

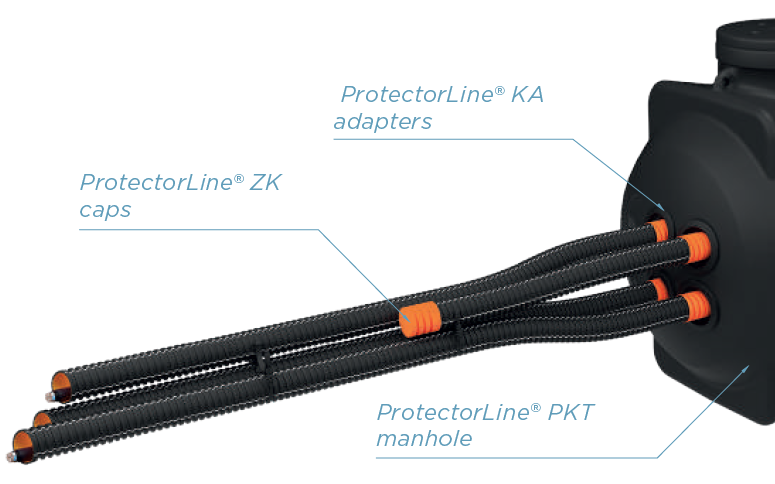

ProtectorLine® cable line protection system
years
0
+
Long service life
(at least 30 years)
(at least 30 years)
Key advantages
- Resistant to aggressive and chemically active environments (seawater, acids, alkalis, etc.)
- Easy installation: do not require special tools
02
02 Application area
Sealing the ends of backup spiral-type pipes
Intended for sealing the ends of backup spiral-type pipes ProtectorLine® KS or ProtectorLine® KN.
03
03 Product range of ProtectorLine® ZK caps
| Name | Pipe outer diameter, mm |
| ProtectorLine® ZK 63 cap | 63 |
| ProtectorLine® ZK 75 cap | 75 |
| ProtectorLine® ZK 90 cap | 90 |
| ProtectorLine® ZK 110 cap | 110 |
| ProtectorLine® ZK 125 cap | 125 |
| ProtectorLine® ZK 140 cap | 140 |
| ProtectorLine® ZK 160 cap | 160 |
| ЗProtectorLine® ZK 180 cap | 180 |
04
04 Technical specifications of ProtectorLine® ZK caps
| Parameter |
Value |
| Climatic version and installation category according to GOST 15150-69 |
UHL1 (climatic category: cold/temperature), M1 (standard vibration and shock resistant) |
| Protection against dust and damp | IP54 |
| Connection type | Threaded |
05
05
Standart
documentation
- TU 22.21.21-010-39082310-2021
06
06
Example wording for categories
or technical specifications:
Cap
Item name
PROTECTORLINE
Trade name
ZK
Cap design
63
Diameter of watertight spiral-type pipes
TU 22.21.21-010-39082310-2021
Technical specification reference number
- PROTECTORLINE ZK 63 cap TU 22.21.21-010-39082310-2021
Polymer cap for sealing backup spiral-type pipes
07
07
Main
characteristics
Operating temperature
- Long-term, for the entire service life: -70 to 60°С
Installation specifics
- Minimum installation temperature -20°С
