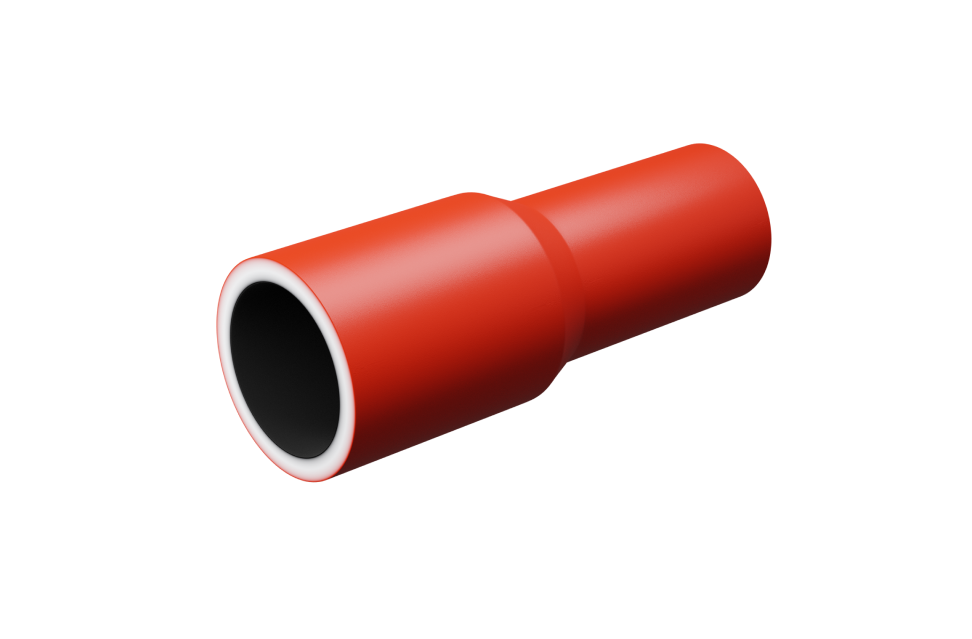

ProtectorFlex® TAP transition adapters
Polymer, heat-resistant
For watertight connection of different types of pipes to each other
ProtectorFlex® TAP is the transition adapter designed for connecting smooth-wall, corrugated, and asbestos-cement pipes.
Adapters are connected to a smooth-walled pipe by butt welding. Corrugated or AC pipes are inserted into the socket, followed by sealing of the connection point using a heat-shrinkable sleeve. Transition adapters provide a reliable mechanical connection of pipes to each other and preserve the existing tightness of the cable duct.
The external appearance and design of the adapter may differ from that shown on the website.
Custom sizes and configurations available upon consultation with the Technical Development Department of Energotek.
(at least 50 years)
Key advantages
- Provide a watertight connection, including with AC pipes, which cannot be welded
- Made from a polymer compound of increased heat resistance
- Corrosion-proof
- Mechanical strength throughout the entire service life
02 Application area
Connection of different types of pipes with each other
Intended for watertight connection of smooth-walled, corrugated and asbestos-cement pipes with each other.
03
Standart
documentation
- TU 2248-011-34311042-2017
04
Example wording for categories
or technical specifications:
-
PROTECTORFLEX TAP-BK 110/BK 125 transition adapter TU 2248-011-34311042-2017
Polymer heat-resistant transition adapter -
PROTECTORFLEX TAP-BK 110/PK 110 transition adapter TU 2248-011-34311042-2017
Polymer heat-resistant transition adapter -
PROTECTORFLEX TAP-BK 160/ASB 150 transition adapter TU 2248-011-34311042-2017
Polymer heat-resistant transition adapter
05
Main
characteristics
Operating temperature
- Long-term allowable heating temperature of cable cores to 105°С
