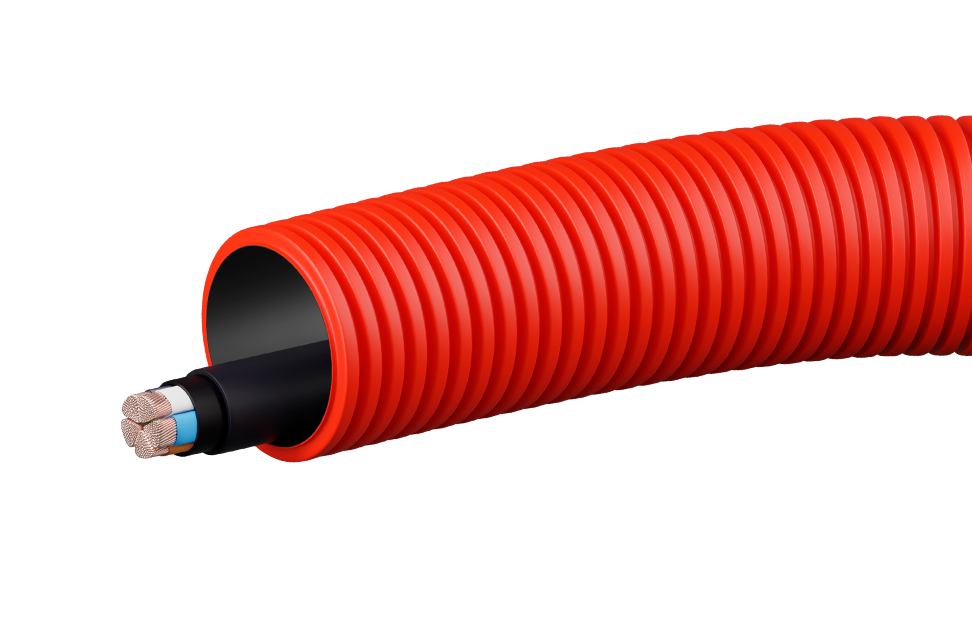

ProtectorLine® KORN pipes
Dual-layer, flexible, with inner FV-0 layer, corrugated, up to 1 kV
For installation by the trenching method
01 Description
ProtectorLine® KORN are dual-layer corrugated pipes made of polymer compound with an external signal layer in red colour and a smooth inner layer that facilitates the process of pulling cable in the duct.
Can be supplied with a steel drawstring in the pipe for cable pulling.
Design
- Outer layer: marker
- Inner layer: smooth, flame-resistant (FV- 0 category)
* Pipes in other colour are available upon request.
(at least 30 years)
Key advantages
- Flame-resistant inner layer (FV-0 category)
- Resistance to aggressive and chemically active environments
- The smooth inner layer eases the cable pulling
- Flexibility: small-radius bending is possible
- Mechanical strength throughout the entire service life
- Light weight: construction vehicles are not required for installation
02 Application area
Mechanical protection of power cable lines, control cables, and FO communication lines
Intended for mechanical protection of power cable lines, control cables, and FO communication lines. Used for installation by trenching method, where applications require flame-resistant inner layer of the pipe.
Laying method
- Open-cut installation
Included in the TSN-2001 Cost Estimate Standards Database
Pursuant to Order No. МКЭ-ОД/21-79 dated October 19, 2021, issued by the Moscow City Committee for Construction Pricing Policy and State Project Review, included in the TSN-2001 Cost Estimate Standards Database, resource codes: 1.12-5-1134 to 1.12-5-1137.
03 Product range of ProtectorLine® КORN pipes
| Nominal outer diameter, mm | Nominal inner diameter, mm | Ring stiffness SN, kN/m2 | Flexural resistance | Minimum bending radius |
| 40 | 32 | 8 | Flexible | 8D |
| 50 | 41 | 8 | Flexible | 8D |
| 63 | 52 | 8 | Flexible | 8D |
| 75 | 61 | 8 | Flexible | 8D |
| 90 | 73 | 8 | Flexible | 8D |
| 110 | 93 | 8 | Flexible | 8D |
| 125 | 105 | 8 | Flexible | 8D |
| 160 | 136 | 6 | Flexible | 8D |
| 180 | 151 | 8 | Rigid | 20D |
| 200 | 169 | 8 | Rigid | 20D |
04 Technical properties of ProtectorLine® КORN pipes
| Parameter | Value |
| Types of cables | Power, low-voltage CL, and FOCL |
| Climatic version and installation category according to GOST 15150-69 | UHL1 (climatic category: cold/ temperature), M1 (standard vibration and shock resistant) |
| Pipe outer diameter, mm | 40 to 200 |
| Ring stiffness SN, kN/m2 | 6-8 |
| Flexural resistance according to GOST R IEC 61386.24-2014 | Flexible |
| Minimum bending radius | 8D* |
| Shore D surface hardness | Minimum 65 |
| Electrical resistance, MOhm | Minimum 100 |
| Flame-resistant inner layer | FV-0 |
| Resistance to oils, gasoline, groundwater, saltwater | Resistant |
* D is the outer diameter of the pipe.
05
Standart
documentation
- GOST R IEC 61386.24-2014
- TU 2248-001-34311042-2015
06
Example wording for categories
or technical specifications:
- PROTECTORLINE KORN 160/136 SN8 pipe TU 2248-001-34311042-2015
Polymer corrugated dual-layer pipe, flexible, with a flame-resistant inner layer (FV-0 category), for laying and protecting power, low-current, and optical cable lines
07
Main
characteristics
Operating temperature
- Long-term, for the entire service life: -70 to 60°С
Shipping length
Pipes are supplied in coils of 50 m, 100 m (for pipes up to 160 mm diameter), as well as in straight lengths of 5.7 m, 6 m*.
Each coil or section is equipped with 1 connecting coupler. Pipes with a diameter of 180 mm are supplied with a connecting heat-shrinkable sleeve.
* Upon request, pipes can be supplied in coils of agreed length.
Installation specifics
- Minimum installation temperature -15°С
- Connection via butt- or heat-shrinkable couplers
- Minimum bending radius at 20°C of ambient temperature is 8D
08 Accessories
“Pipe-to-pipe” 40-200 connectors
Polymer, watertight, UV-resistant
For watertight connection of corrugated pipes with outer diameters of 40 to 200 mm
ProtectorLine® KA ring-shape adapters
Elastic
For bushing smooth-walled and spiral pipes into ProtectorLine® PKT
manholes
