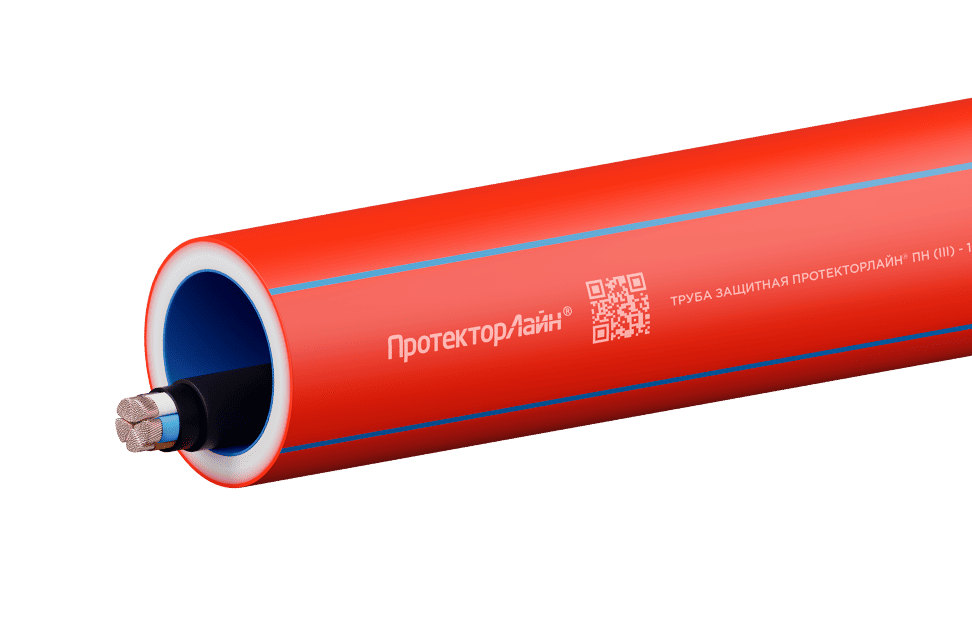

ProtectorLine® PN pipes
Smooth-walled, with inner FV-0 layer
For underground installation by any known methods, as well as for the construction of duct banks. For applications requiring flame-resistant inner layer of the pipe
01 Description
Mechanical calculationProtectorLine® PN pipes are three-layer pipes made of a polymer compound with an outer signal layer of red colour and a flame-resistant inner layer.
* Pipes in other colour are available upon request.
Versions
Triple-layer
version
Inner layer: flame-resistant
Main layer: load-bearing
Outer layer: marker
Dual-layer
version
Inner layer: flame-resistant
Outer layer: load-bearing, marker
ProtectorFlex® PN pipes modifications
Heat-resistant version is available for cables with a permissible core heating temperature up to 90°C.
(at least 30 years)
Key advantages
- Flame-resistant inner layer
- Dielectric properties
- Mechanical strength throughout the entire service life
- Both butt welding or electrofusion couplers connection
- Resistance to aggressive and chemically active environments
02 Application area
Mechanical protection of power cable lines, control cables, and FO communication lines
Intended for mechanical protection of power cable lines, control cables, and FO communication lines during underground installation by any known methods (horizontal directional drilling, puncturing, open-trenching, etc.), as well as for the construction of duct banks. For applications requiring flame-resistant inner layer of the pipe.
Laying methods
- Horizontal directional drilling (HDD)
- Pipe jacking
- Open-cut installation
03 Product range of ProtectorLine® PN
|
Pipe outer diameter D, mm |
Ring stiffness SN, kN/m2 | ||||||
|---|---|---|---|---|---|---|---|
| 12 | 16 | 24 | 32 | 48 | 64 | 96 | |
| Pipe wall thickness e, mm | |||||||
| 50 | 2,5 | 2,8 | 3,1 | 3,4 | 3,9 | 4,3 | 4,8 |
| 63 | 3,2 | 3,5 | 4,0 | 4,3 | 4,9 | 5,4 | 6,1 |
| 75 | 3,8 | 4,2 | 4,7 | 5,2 | 5,9 | 6,4 | 7,2 |
| 90 | 4,6 | 5,0 | 5,7 | 6,2 | 7,0 | 7,7 | 8,7 |
| 110 | 5,6 | 6,1 | 6,9 | 7,6 | 8,6 | 9,4 | 10,6 |
| 125 | 6,3 | 6,9 | 7,9 | 8,6 | 9,8 | 10,7 | 12,0 |
| 140 | 7,1 | 7,8 | 8,8 | 9,6 | 10,9 | 11,9 | 13,5 |
| 160 | 8,1 | 8,9 | 10,1 | 11,0 | 12,5 | 13,6 | 15,4 |
| 180 | 9,1 | 10,0 | 11,3 | 12,4 | 14,0 | 15,3 | 17,3 |
| 200 | 10,1 | 11,1 | 12,6 | 13,8 | 15,6 | 17,0 | 19,3 |
| 225 | 11,4 | 12,5 | 14,2 | 15,5 | 17,6 | 19,2 | 21,7 |
| 250 | 12,7 | 13,9 | 15,7 | 17,2 | 19,5 | 21,3 | 24,1 |
| 280 | 14,2 | 15,5 | 17,6 | 19,3 | 21,8 | 23,9 | 27,0 |
| 315 | 15,9 | 17,5 | 19,8 | 21,7 | 24,6 | 26,8 | 30,4 |
| 355 | 18,0 | 19,7 | 22,3 | 24,4 | 27,7 | 30,3 | 34,2 |
| 400 | 20,2 | 22,2 | 25,2 | 27,5 | 31,2 | 34,1 | 38,5 |
| 450 | 22,8 | 24,9 | 28,3 | 31,0 | 35,1 | 38,3 | 43,4 |
| 500 | 25,3 | 27,7 | 31,5 | 34,4 | 39,0 | 42,6 | 48,2 |
| 560 | 28,3 | 31,0 | 35,3 | 38,6 | 43,7 | 47,7 | 54,0 |
| 630 | 31,9 | 34,9 | 39,7 | 43,4 | 49,2 | 53,7 | 60,7 |
04 Technical specifications of ProtectorLine® PN
| Parameters |
Values |
| Types of cables |
Power, low-voltage CL, and FOCL |
| Climatic version and installation category according to GOST 15150-69 |
UHL1 (climatic category: cold/ temperature), M1 (standard vibration and shock resistant) |
| Resistance to aggressive and chemically active environments | Resistant in accordance with SN 550-82 design standards for plastic piping |
| Resistance to oils, gasoline, groundwater, saltwater | Resistant |
| UV-resistance | Resistant during the storage period |
| Ovality, % | Maximum 3,5 |
| Tensile elastic modulus, MPa | Minimum 850 |
| Electrical resistance, MOhm | Minimum 100 |
| Mean coefficient of linear thermal expansion at temperature range of 20-70°С, К-1 |
1,8∙10-4 |
| Shore D surface hardness | Minimum 65 |
| Flame-resistant inner layer | FV-0 |
| Resistance to ignition by a heated wire at the temperature of, °С | Minimum 960 |
| Thermal conductivity of the wall at 60°С, W/m·K | Minimum 0,5 |
| Elongation at break, % |
Minimum 350 |
| Change in length after heating, % |
Maximum 3 |
| Thermal stability at 200°С, min |
Minimum 20 |
| Impact resistance according to GOST R IEC 61386.24-2014 |
Normal |
| Compressive strength according to GOST R IEC 61386.24-2014, N |
450, 750 |
| Manufacturing method | Extrusion |
| Sealing of connections | IP68 |
| Minimum bending radius at 20°С | 20D* |
| Minimum installation temperature, °С | -15 |
| Storage period, years | 3 |
* D is the outer diameter of the pipe.
05 Minimum pipe bending radius
Calculation
Е — modulus of elasticity of the pipe material under tension, MPa
σ — yield strength of the pipe material under tension, MPa
D — pipe outer diameter, mm
For example, at Е = 850 MPa and σ = 21 MPa the minimum bending radius will be r = 20D.
Installation experience proves that the minimum bending radius of the pipe also depends on the ambient temperature at the time of pipe laying.
The final recommendations are presented in the table.
| Minimum allowable bending radius of the pipe depending on the ambient temperature | |||
| Ambient temperature | 0°С | 10°С | 20°С |
| Minimum allowable bending radius | 50D | 35D | 20D |
06
Standart
documentation
- GOST R IEC 61386.24-2014
- TU 22.21.29-009-39082310-2025
07
Example wording for categories
or technical specifications:
- ТPROTECTORLINE PN (III) pipe – 160/12.5 SN48 F120 N750 TU 22.21.29-009-39082310-2025 / GOST R IEC 61386.24-2014
Polymer smooth-walled pipe, flame-resistant inner layer (FV-0 category), for laying and protecting power, low-current, and optical cable lines
08
Main
characteristics
Operating temperature
- Long-term, for the entire service life: -70 to 60°С
Shipping length
Standard shipping length is 13 m (12 m) long section or coils of 100 m for pipe diameters up to 110 mm.
Installation specifics
- Minimum installation temperature -15°С
- Connected by butt welding, as well as using electrofusion couplers
- Minimum bending radius at 20°C of ambient temperature is 20D, where D is the outer diameter of the pipe
09 Accessories
ProtectorLine® KA ring-shape adapters
Elastic
For bushing smooth-walled and spiral pipes into ProtectorLine® PKT
manholes
ProtectorFlex® ZUP protective cable caps
Polymer, watertight
For sealing the ends of backup and operational protective cable pipes
ProtectorFlex® UVK cable seals
Polymer, watertight, heat-resistant, one-phase
For sealing the space between the cable and the pipe
ProtectorFlex® UVK-3 cable seals
Polymer, watertight, heat-resistant, three-phase
For sealing the space between 3 cables and the pipe
ProtectorFlex® TAP transition adapters
Polymer, heat-resistant
For watertight connection of different types of pipes to each other
