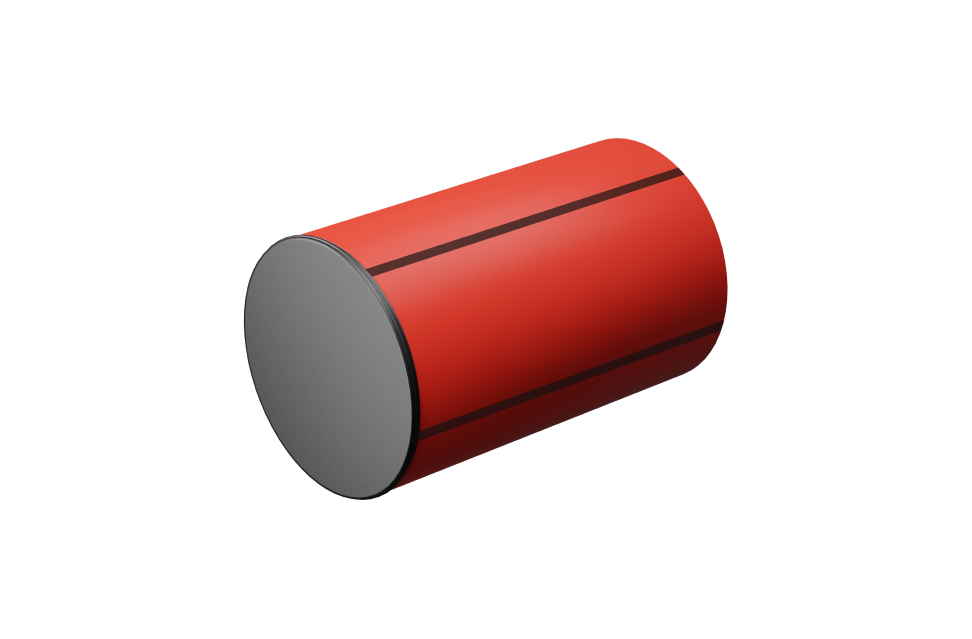

ProtectorFlex® ZUP protective cable caps
Polymer, watertight
For sealing the ends of backup and operational protective cable pipes
01
Polymer, watertight ProtectorFlex® ZUP protective cable caps are used for sealing the ends of backup and operational protective cable pipes.
years
0
+
Long service life
(at least 50 years)
(at least 50 years)
Key advantages
- Provide reliable sealing (IP68 protection according to GOST 14254-2015)
- Corrosion-proof
- Welded by butt welding or using an electrofusion machine
02
02 Application area
Sealing the ends of backup and operational protective cable pipes
Polymer cable caps provide reliable sealing and protection of cable pipes, preventing the ingress of moisture, dust, and dirt during storage, transportation, installation, and maintenance.
Included in the Cost Estimate Standards Database
Included in the Construction Resources Classifier (CRC), resource codes: 22.29.29.190.59.1.24.04-1287-000 to 22.29.29.190.59.1.24.04-1295-000.
03
03 Product range of ProtectorFlex® ZUP plugs*
| Cap name | Cap outer diameter D, mm |
| ProtectorFlex® ZUP cap 63 | 63 |
| ProtectorFlex® ZUP cap 75 | 75 |
| ProtectorFlex® ZUP cap 90 | 90 |
| ProtectorFlex® ZUP cap 110 | 110 |
| ProtectorFlex® ZUP cap 125 | 125 |
| ProtectorFlex® ZUP cap 140 | 140 |
| ProtectorFlex® ZUP cap 160 | 160 |
| ProtectorFlex® ZUP cap 180 | 180 |
| ProtectorFlex® ZUP cap 200 | 200 |
| ProtectorFlex® ZUP cap 225 | 225 |
| ProtectorFlex® ZUP cap 250 | 250 |
| ProtectorFlex® ZUP cap 280 | 280 |
* Custom plugs of required sizes can be manufactured upon request.
04
04
Standart
documentation
- TU 2248-005-34311042-2015
05
05
Example wording for categories
or technical specifications:
Cap
Item name
PROTECTORFLEX
Trade name
ZUP
Cap design
225
Outer diameter of the pipe to which the cap is mounted
TU 2248-005-34311042-2015
Technical specification reference number
- PROTECTORFLEX ZUP 225 cap TU 2248-005-34311042-2015
Polymer watertight welded cap
06
06
Main
characteristics
Operating temperature
- Long-term allowable heating temperature of cable cores to 105°С
