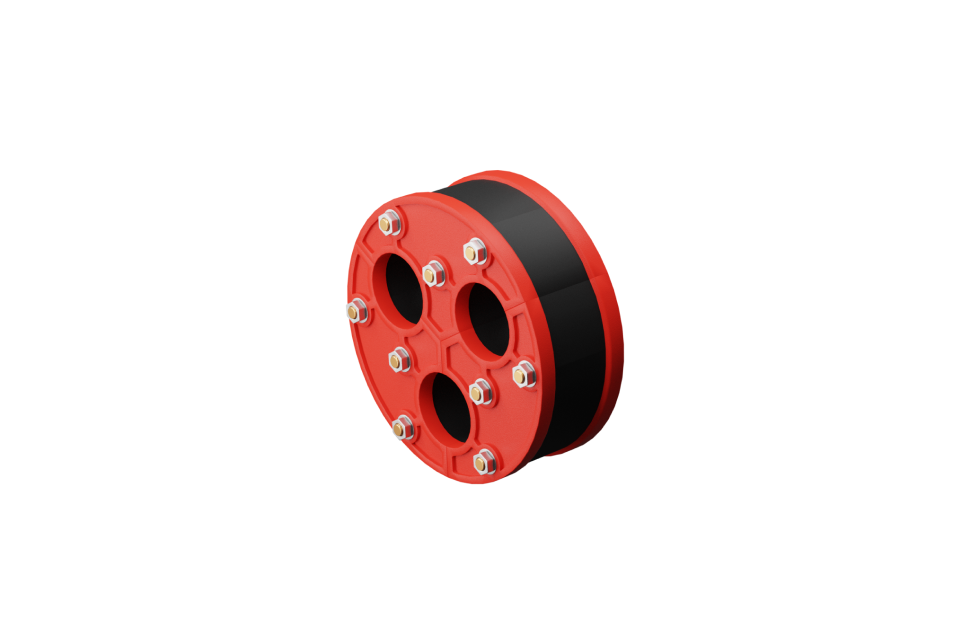

ProtectorFlex® UVK-3 cable seals
Polymer, watertight, heat-resistant, three-phase
For sealing the space between 3 cables and the pipe
Термостойкий эластомер
Нержавеющая сталь
01
01 Description
ProtectorFlex® UVK-3 cable seal seal has a modular structure. The design is split, which means seals can be installed on-site without pre-assembly.
years
0
+
Long service life
(at least 50 years)
(at least 50 years)
Key advantages
- Ensure the tightness of the pipe with the cables inside (IP68 protection according to GOST 14254-2015)
- Feature a split design intended for epeated use
- Keep the cable centered within the pipe preventing mechanical damage to cable sheath
- Corrosion-proof
- Do not form a closed metal loop
- On-site installation – no pre-assembly required
- Elastic elements are made of heat-resistant elastomer
- Metal elements are made of stainless steel
- Easy to install
02
02 Application area
Reliable sealing and protection of the cable sheath
Intended for sealing the space between cables and the pipe. The seal prevents the ingress and accumulation of groundwater in the pipes, while also ensuring that cables can be extracted without hindrance for repair or replacement.
03
03 Product range of ProtectorFlex® UVK-3*
| Seal name | Pipe outer diameter D, mm |
| ProtectorFlex® UVK-3 160 cable seal | 160 |
| ProtectorFlex® UVK-3 180 cable seal | 180 |
| ProtectorFlex® UVK-3 200 cable seal | 200 |
| ProtectorFlex® UVK-3 225 cable seal | 225 |
| ProtectorFlex® UVK-3 250 cable seal | 250 |
|
ProtectorFlex® UVK-3 280 cable seal |
280 |
* Custom products of required sizes can be manufactured upon request. Upon request of non-standard dimensions, the external appearance and design of the seal may differ from those shown in the catalog.
04
04
Standart
documentation
- TU 2531-001-343110142-2015
05
05
Example wording for categories
or technical specifications:
Cabel seal
Item name
PROTECTORFLEX
Trade name
UVK
Seal design
-
3
Three-phase version
225
Outer diameter of the pipe to which the seal will be installed
TU 2531-001-34311042-2015
Technical specification reference number
- PROTECTORFLEX UVK-3 225 cable seal TU 2531-001-34311042-2015
Polymer watertight heat-resistant cable seal for three-phase cables
06
06
Main
characteristics
Рабочая температура
- Long-term, for the entire service life: -45 to 110°С
Installation specifics
- Sequential, uniform tightening of the bolts on each link expands the seal, filling the space between the cable and the pipe
