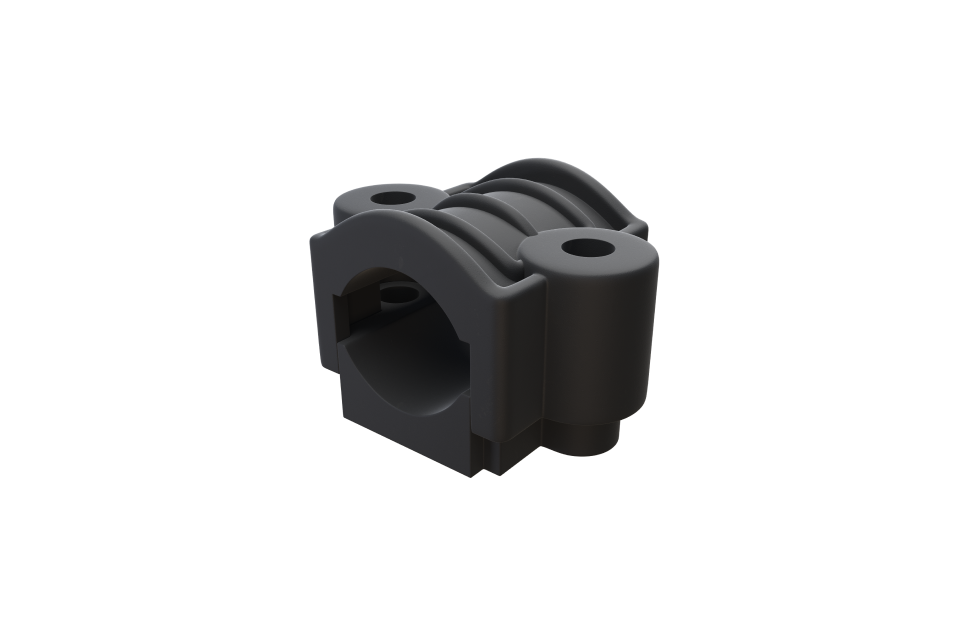

Energotek KO clamps
Polymer, flame retardant, UV-resistant, resistant to dynamic loads
For fastening corrugated pipes, as well as cables to mounting structures
01
01 Description
Energotek KO clamps are made from a GFRP compound.
A specially designed connection between the lower and upper parts of the clamp increases the overall stability of the entire structure to mechanical loads, and also prevents the loss of the clamp cover during installation.
years
0
+
Long service life
(at least 30 years)
(at least 30 years)
Key advantages
- Resistant to aggressive and chemically active environments (seawater, acids, alkalis, etc.)
- UV-resistant
- Made from non-magnetic materials
- Fire-safe
- Withstand high dynamic loads up to 40 kN
- Easy to install
- Do not damage the fixed products due to absence of sharp corners
02
02 Application area
Fastening corrugated pipes
0,4
kV
1
kV
Intended for fastening ProtectorLine® NG corrugated pipes, as well as cables to mounting structures under conditions of exposure to UV radiation, aggressive and chemically active environments.
03
03 Product range of Energotek KO clamps
| Name |
Outer diameter of pipe (cable), mm |
||||||
|---|---|---|---|---|---|---|---|
| Energotek KO 11/25 clamp | 11-25 | ||||||
|
Energotek KO 25/40 clamp |
25-40 | ||||||
|
Energotek KO 40/65 clamp |
40-65 | ||||||
|
Energotek KO 45/70 clamp |
45-70 |
||||||
|
Energotek KO 65/90 clamp |
65-90 |
||||||
|
Energotek KO 90/130 clamp |
90-130 |
||||||
|
Energotek KO 130/160 clamp |
130-160 |
||||||
04
04
Standart
documentation
- GOST R IEC 61914-2015
- TU 22.29.29-008-34311042-2017
05
05
Example wording for categories
or technical specifications:
Clamp
Item name
ENERGOTEK
Trade name
KO
Clamp design
11
Minimum outer diameter of pipe (cable)
/
25
Maximum outer diameter of pipe (cable)
Т120°С
Maximum operating temperature
TU 22.29.29-008-34311042-2017
Technical specification reference number
- ENERGOTEK KO 11/25 T120°C clamp TU 22.29.29-008-34311042-2017
Polymer fastening, flame-retardant, UV-resistant, resistant to dynamic loads
06
06
Main
characteristics
Operating temperature
- Long-term, for the entire service life: -60 to 120°С
