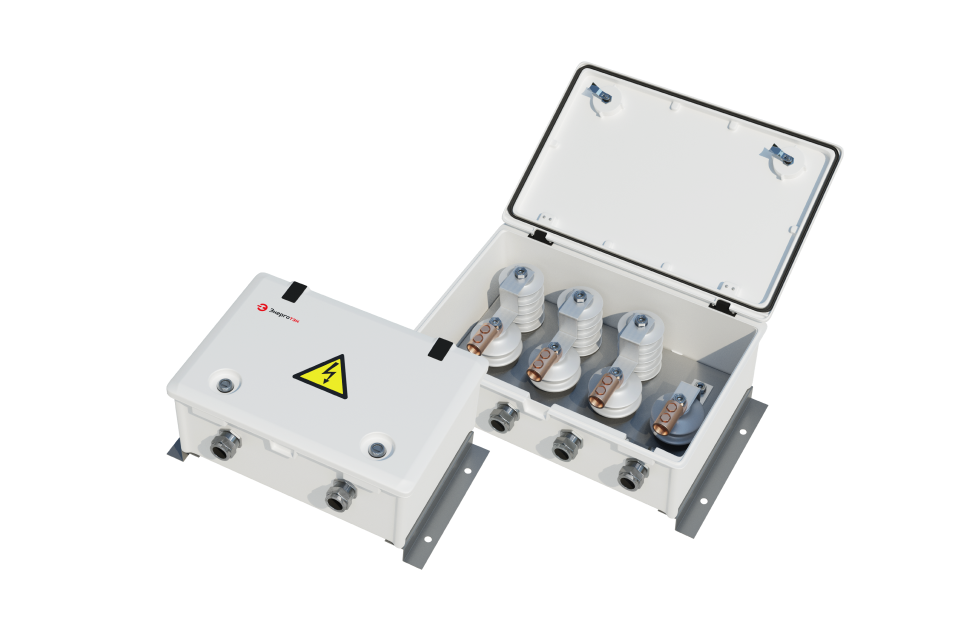

Energotek KZP grounding link boxes
Polymer, vandal-proof, corrosion resistant, up to 500 kV
For solid grounding or grounding through an overvoltage protection device
01 Description
Energotek KZP grounding link boxes are GFRP link boxes with electrical equipment housed inside.
(at least 50 years)
Key advantages
- GFRP vandal-proof housing
- Electrically safe body that does not require grounding
- Corrosion-proof
- UV-resistant
- Fireproof design (made of flame-resistant material, category FV-0)
- IP65 protection rating against dust and damp
- Modular design allows for separate replacement of components with no need to replace the entire box
02 Application area
Solid grounding or grounding through an overvoltage protection device
Intended for cross-bonding screens at the ends of cable lines with nominal voltage ranging from 6 to 500 kV: for solid grounding or grounding through an overvoltage protection device.
03 Technical specifications and product range of Energotek KZP grounding link boxes
| Parameter |
Single-phase earthing link boxes |
Three-phase earthing link boxes |
||
|---|---|---|---|---|
|
Energotek KZP-O |
Energotek KZP-O/OPN-8.2-550 | Energotek KZP-T | Energotek KZP-T/OPN-8.2-550 | |
| Description | Terminal single-phase earthing link box for solid screens grounding | Terminal single-phase earthing link box for cross-bonding screens via surge arresters | Terminal three-phase earthing link box for solid screens grounding | Terminal three-phase earthing link box for cross-bonding screens via surge arresters |
| Sample text for specification or technical requirements | ENERGOTEK KZP-O UHL1 earthing link box TU 27.33.13-003-39082310-2020 | ENERGOTEK KZP-O/OPN-8.2-550 UHL1 earthing link box TU 27.33.13-003-39082310-2020 | ENERGOTEK KZP-T UHL1 earthing link box TU 27.33.13-003-39082310-2020 | Energotek KZP-T/OPN-8.2-550 UHL1 earthing link box TU 27.33.13-003-39082310-2020 |
| Overall dimensions LxWxH*, mm | 570х350х243 | 660х400х243 | ||
| Weight, kg | 12,0 | 12,8 | 14,7 | 18,6 |
| Surge arrester long-term operating voltage, kV | - | 8,2 | - | 8,2 |
| Surge arrester current-carrying capacity, A | - | 550 | - | 550 |
| Applicable grounding cable cross-section range, mm2 |
35 ÷ 400 |
|||
| Protection against mechanical impact |
IK 10 |
|||
| Protection against dust and damp** |
IP65 |
|||
| Climatic version and installation category |
UHL1 (climatic category: cold/temperature) |
|||
* Excluding protruding parts (terminations).
** Grounding link boxes with an IP68 ingress protection rating can be manufactured for installation in cable manholes.
04 Delivery kit
- Earthing link box
- Mounting plates
- Cable lugs supplied with heat-shrinkable sleeves
05
Example wording for categories
or technical specifications:
- Energotek KZP-T/OPN- 8.2-550 UHL1 earthing link box TU 27.33.13-003-39082310-2020
Three-phase polymer vandal-proof corrosion-resistant earthing link box with surge arrester, operating voltage 8.2 kV and current carrying capacity 550A - ENERGOTEK KZP-T UHL1 earthing link box TU 27.33.13-003-39082310-2020
Three-phase polymer vandal-proof corrosion-resistant earthing link box - ENERGOTEK KZP-O/OPN-8.2-550 UHL1 earthing link box TU 27.33.13-003-39082310-2020
Single-phase polymer vandal-proof corrosion-resistant earthing link box with 8.2 kV operating voltage and current carrying capacity 550A - ENERGOTEK KZP-O UHL1 earthing link box TU 27.33.13-003-39082310-2020
Single-phase polymer vandal-proof corrosion-resistant earthing link box
06
Main
characteristics
Operating temperature
- Long-term, for the entire service life: -60 to 60°C
Installation specifics
- Minimum installation temperature is -15°C. Cables are connected inside the box with cable lugs
- A cable centralizer is required to ensure alignment of the connected cables with a cross-section of 185 mm2 or larger – use Energotek VK-O for single-phase boxes and Energotek VK-T for three-phase boxes)
07 Accessories
Energotek PPS bonding cable (PE insulated)
Connecting, flexible, watertight, flame-retardant
For bringing out screens of single-phase 6–500 kV cables
