01 Description

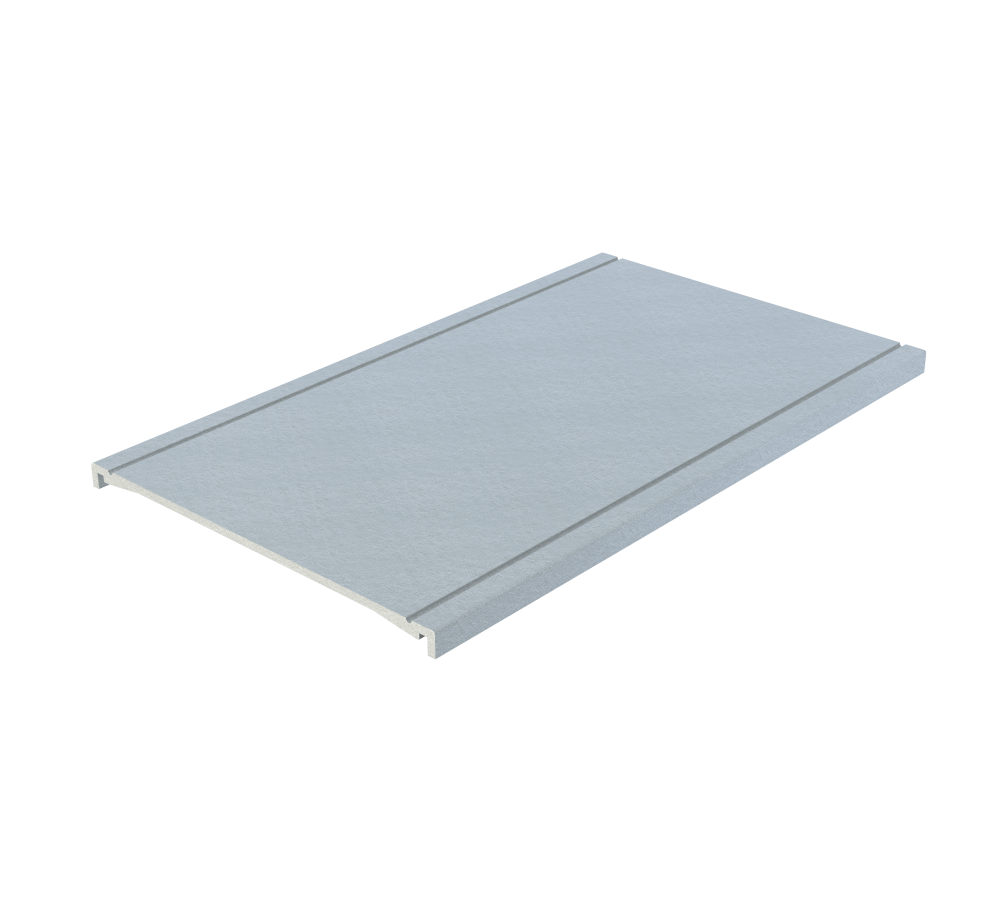

Energotek polymer GFRP cable tray covers are secured using polymer clamping clips. The clips are attached by snapping them into special grooves provided in the cover and in the lower section of the cable tray.
The cable tray covers are universal and suitable for all types of cable trays.
02 Product range of covers for Energotek GFRP trays of SK, PK, and LK types
| No. | Name | Tray width, mm | Cover width, mm | Cover length, mm | Weight, kg |
|---|---|---|---|---|---|
| 1 | GFRP tray cover К-3 60 | 60 | 60 | 3000 | 1,53 |
| 2 | GFRP tray cover К-3 100 | 100 | 105 | 3000 | 2,13 |
| 3 | GFRP tray cover К-3 200 | 200 | 205 | 3000 | 4,14 |
| 4 | GFRP tray cover К-3 300 | 300 | 306 | 3000 | 7,68 |
| 5 | GFRP tray cover К-3 400 | 400 | 406 | 3000 | 10,08 |
| 6 | GFRP tray cover К-3 500 | 500 | 508 | 3000 | 15,45 |
| 7 | GFRP tray cover К-3 600 | 600 | 606 | 3000 | 18,27 |
03 Delivery kit
Cable tray covers and clamping clips are not included in the standard scope of supply for polymer glass-reinforced cable trays and are ordered separately.
04
Example wording for categories
or technical specifications:
- ENERGOTEK GFRP tray cover K-3 60 KhS T50°C NG UHL1 TU 27.33.13-002-39082310-2020
GFRP tray cover, flame-retardant, chemically resistant, UV- resistant
- ENERGOTEK GFRP tray cover K-3 60 KhS+ T85°C NG UHL1 TU 27.33.13-002-39082310-2020
GFRP tray cover, flame-retardant, enhanced chemical resistance, UV-resistant
05 Used during installation
Energotek GFRP ladder-type trays
Polymer, flame retardant, UV-resistant
For for laying and mechanical protection
of cable lines and communication lines under conditions of UV exposure
Energotek GFRP solid bottom trays
Polymer, flame retardant, UV-resistant
For for laying and mechanical protection
of cable lines and communication lines under conditions of UV exposure
Energotek KET wall-mounted polymer link boxes
Polymer, GFRP, UV-resistant
For arranging and protecting low-voltage distribution, switching, and control equipment, metering devices
