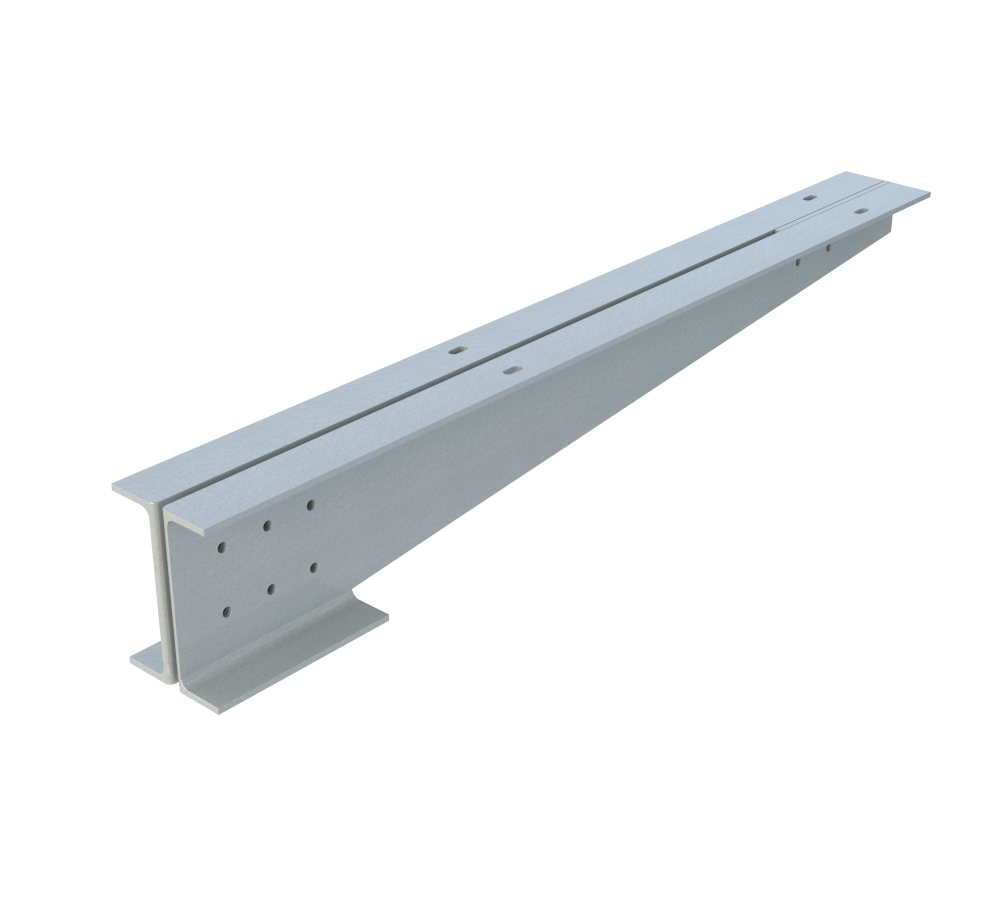

GFRP wall-mounted bracket arms
Polymer
For mounting cable trays onto the upright of a wall-mounted bracket
Intended for mounting Energotek GFRP polymer cable trays onto the upright of a wall-mounted bracket. The cantilever bracket is secured to the upright using fasteners.
02 Product range of GFRP wall-mounted bracket arms
| No. | Name |
Tray width, mm |
Bracket width, mm | Bracket height, mm |
| 1 |
КGFRP bracket KNK 100
|
100 | 250 | 100 |
| 2 | GFRP bracket KNK 200 | 200 | 350 | 100 |
| 3 | GFRP bracket KNK 300 | 300 | 450 | 100 |
| 4 | GFRP bracket KNK 400 | 400 | 550 | 100 |
| 5 | GFRP bracket KNK 500 | 500 | 650 | 100 |
| 6 |
GFRP bracket KNK 600 |
600 | 750 | 100 |
03
Example wording for categories
or technical specifications:
- ENERGOTEK KNK 100 KhS+ T85°C NG UHL1 GFRP bracket TU 27.33.13-002-39082310-2020
Wall-mounted bracket arm, GFRP, enhanced chemical resistance, UV-resistant
04 Used during installation
Energotek GFRP ladder-type trays
Polymer, flame retardant, UV-resistant
For for laying and mechanical protection
of cable lines and communication lines under conditions of UV exposure
Energotek GFRP solid bottom trays
Polymer, flame retardant, UV-resistant
For for laying and mechanical protection
of cable lines and communication lines under conditions of UV exposure
Energotek GFRP ventilated-through trays
Polymer, flame retardant, UV-resistant
For for laying and mechanical protection
of cable lines and communication lines under conditions of UV exposure
