01 Description
Intended for separating cables when laying them inside cable trays. The dividers are supplied in 3 m lengths and are manufactured from a polymer material.

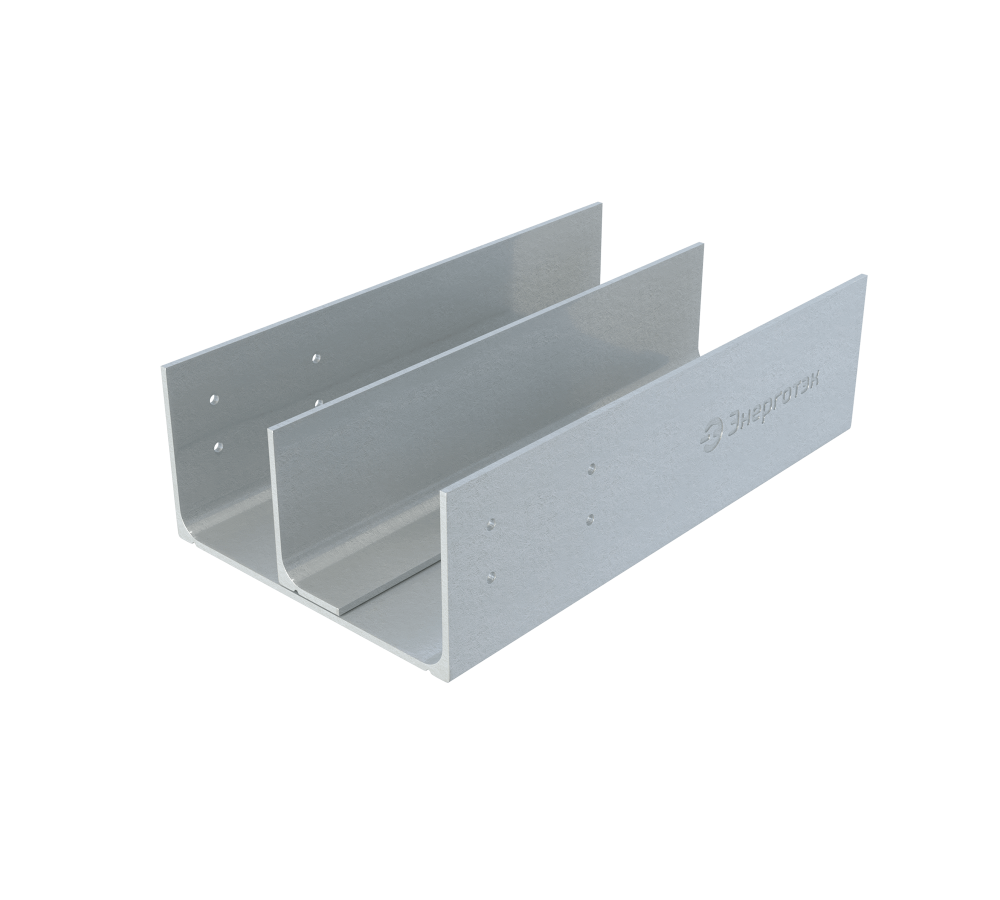

Cable installation inside a cable tray using a divider
The components are secured in place using pan-head screws in accordance with GOST 17473-80 or 6.4 mm diameter blind rivets in accordance with DIN 7337.
02 Product range of GFRP dividers
| No. | Name | Height, mm |
| 1 | GFRP divider R 70 | 70 |
| 2 | GFRP divider R 90 | 90 |
| 3 | GFRP divider R 143 | 143 |
03
Example wording for categories
or technical specifications:
- ENERGOTEK GFRP divider R 90 KhS T50°C NG UHL1 TU 27.33.13-002-39082310-2020
GFRP divider, flame-retardant, chemically resistant, UV- resistant, 90 mm high
- ENERGOTEK GFRP divider R 90 KhS+ T85°C NG UHL1 TU 27.33.13-002-39082310-2020
GFRP divider, flame-retardant, enhanced chemical resistance, UV-resistant, 90 mm high
04 Used during installation
Energotek GFRP ladder-type trays
Polymer, flame retardant, UV-resistant
For for laying and mechanical protection
of cable lines and communication lines under conditions of UV exposure
Energotek GFRP solid bottom trays
Polymer, flame retardant, UV-resistant
For for laying and mechanical protection
of cable lines and communication lines under conditions of UV exposure
Energotek GFRP ventilated-through trays
Polymer, flame retardant, UV-resistant
For for laying and mechanical protection
of cable lines and communication lines under conditions of UV exposure
