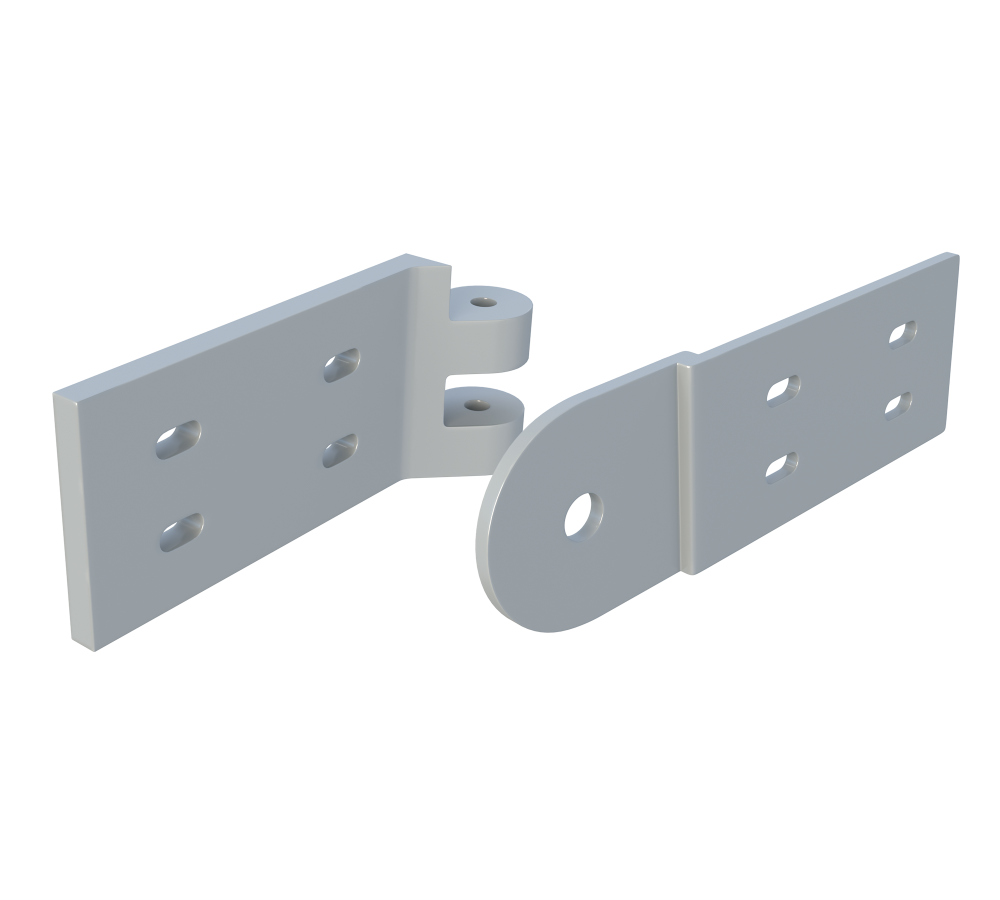

GFRP swivel connecting plates
Polymer
For arranging vertical and horizontal bends in cable rack systems
01 Description
GFRP swivel connecting plates are intended for creating vertical and horizontal bends in cable rack systems. The bend elements are assembled by pairing and connecting the plates to form an angled element during cable route installation. This allows for compensation of design inaccuracies and adjustment of the bend angle on site.
The plates are manufactured from a polymer material in two standard sizes:
- GFRP plate PG
- GFRP plate PV
Connection of Energotek GFRP polymer cable trays using vertical and horizontal swivel connecting plates
02
Example wording for categories
or technical specifications:
- ENERGOTEK GFRP plate PG KhS T50°C NG UHL1
TU 27.33.13-002-39082310-2020
GFRP plate, flame-retardant, chemically resistant, UV- resistant, for horizontal turn - ENERGOTEK GFRP plate PG KhS+ T85°C NG UHL1
TU 27.33.13-002-39082310-2020
GFRP plate, flame-retardant, enhanced chemical resistance, UV-resistant, for horizontal turn - ENERGOTEK GFRP plate PV KhS T50°C NG UHL1
TU 27.33.13-002-39082310-2020
GFRP plate, flame-retardant, chemically resistant, UV- resistant, for vertical turn - ENERGOTEK GFRP plate PV KhS+ T85°C NG UHL1
TU 27.33.13-002-39082310-2020
GFRP plate, flame-retardant, enhanced chemical resistance, UV-resistant, for vertical swivel
